Part Number: P4C164
Description: The P4C164 is a 65,536-bit ultra high-speed static RAM organized as 8K x 8. The CMOS memory requires n...
- Table of contents:
P4C164
-
Suppliers
DataSheet
General Description
P4C164 General Description
The P4C164 is a 65,536-bit ultra high-speed static RAM organized as 8K x 8. The CMOS memory requires no clocks or refreshing and has equal access and cycle times. Inputs are fully TTL-compatible. The RAM operates from a single 5V±10% tolerance power supply. With battery backup, data integrity is maintained with supply voltages down to 2.0V. Current drain is typically 10 A from a 2.0V supply.
Access times as fast as 8 nanoseconds are available, permitting greatly enhanced system operating speeds.
The P4C164 is available in 28-pin 300 mil DIP and SOJ, 28- pin 600 mil plastic and ceramic DIP, 28-pin 350 x 550 mil LCC, 32-pin 450 x 550 mil LCC, and 28-pin CERPACK.
The 70ns and 100ns P4C164s are available in the 600 mil plastic DIP.
P4C164 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VCC | Power Supply Pin with Respect to GND | 0.5 to +7 | V |
| VTERM | Terminal Voltage with Respect to GND (up to 7.0V) | 0.5 to VCC +0.5 | V |
| TA | Operating Temperature | 55 to +125 | °C |
P4C164 Features
Full CMOS, 6T Cell
High Speed (Equal Access and Cycle Times)
8/10/12/15/20/25/35/70/100 ns (Commercial)
10/12/15/20/25/35/70/100 ns(Industrial)
12/15/20/25/35/45/70/100 ns (Military)
Low Power Operation
Output Enable and Dual Chip Enable Control
Functions
Single 5V±10% Power Supply
Data Retention with 2.0V Supply, 10 A Typical
Current (P4C164L Military)
Common Data I/O
Fully TTL Compatible Inputs and Outputs
Standard Pinout (JEDEC Approved)
28-Pin 300 mil Plastic DIP, SOJ
28-Pin 600 mil Plastic DIP (70 & 100ns)
28-Pin 300 mil SOP (70 & 100ns)
28-Pin 300 mil Ceramic DIP
28-Pin 600 mil Ceramic DIP
28-Pin 350 x 550 mil LCC
32-Pin 450 x 550 mil LCC
28-Pin CERPACK
High Speed (Equal Access and Cycle Times)
8/10/12/15/20/25/35/70/100 ns (Commercial)
10/12/15/20/25/35/70/100 ns(Industrial)
12/15/20/25/35/45/70/100 ns (Military)
Low Power Operation
Output Enable and Dual Chip Enable Control
Functions
Single 5V±10% Power Supply
Data Retention with 2.0V Supply, 10 A Typical
Current (P4C164L Military)
Common Data I/O
Fully TTL Compatible Inputs and Outputs
Standard Pinout (JEDEC Approved)
28-Pin 300 mil Plastic DIP, SOJ
28-Pin 600 mil Plastic DIP (70 & 100ns)
28-Pin 300 mil SOP (70 & 100ns)
28-Pin 300 mil Ceramic DIP
28-Pin 600 mil Ceramic DIP
28-Pin 350 x 550 mil LCC
32-Pin 450 x 550 mil LCC
28-Pin CERPACK

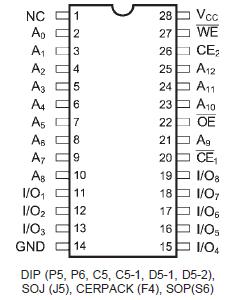

P4C164 Connection Diagram
