Features: ` Full static 80C51 Central Processing Unit
` 8-bit CPU, ROM, RAM, I/O in a 40-lead DIP, 40-lead VSO or 44-lead QFP package
` 128 bytes on-chip RAM Data Memory
` 4 kbytes on-chip ROM Program Memory for P83CL410
` External memory expandable up to 128 kbytes: RAM up to 64 kbytes and ROM up to 64 kbytes
` Four 8-bit ports; 32 I/O lines
` Two 16-bit Timer/Event counters
` On-chip oscillator suitable for RC, LC, quartz crystal or ceramic resonator
` Thirteen source, thirteen vector, nested interrupt structure with two priority levels
` I2C-bus interface for serial transfer on two lines
` Enhanced architecture with:
non-page oriented instructions
direct addressing
four 8-byte RAM register banks
stack depth limited only by available internal RAM (maximum 128 bytes)
multiply, divide, subtract and compare instructions
` Reduced power consumption through Power-down and Idle modes
` Wake-up via external interrupts at Port 1
` Frequency range: DC to 12 MHz
` Supply voltage: 1.8 to 6.0 V
` Very low current consumption
` Operating ambient temperature range: -40 to +85 °C.ApplicationThe P8xCL410 is an 8-bit general purpose microcontroller especially suited for battery-powered applications.
The P8xCL410 also functions as an arithmetic processor having facilities for both binary and BCD arithmetic plus bit-handling capabilities.

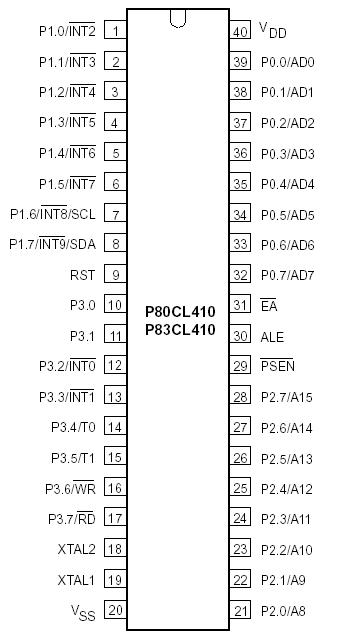

Pinout
Specifications
| SYMBOL |
PARAMETER |
MIN. |
MAX. |
UNIT |
| VDD |
supply voltage |
-0.5 |
+6.5 |
V |
| VI |
input voltage on any pin with respect to ground (VSS) |
-0.5 |
VDD + 0.5 |
V |
| II |
DC current on any input |
-5.0 |
+5.0 |
mA |
| IO |
DC current on any output |
-5.0 |
+5.0 |
mA |
| Ptot |
total power dissipation |
- |
300 |
mW |
| Tstg |
storage temperature |
-65 |
+150 |
°C |
| Tamb |
operating ambient temperature |
-40 |
+85 |
°C |
| Tj |
operating junction temperature |
-40 |
+125 |
°C |
DescriptionThe P80CL410; P83CL410 (hereafter generally referred to as the P8xCL410) is manufactured in an advanced CMOS technology that allows the device to operate at voltages down to 1.8 V and at frequencies down to DC. The P8xCL410 has the same instruction set as the 80C51.
The P8xCL410 features 4 kbyte ROM (83CL410), 128 bytes RAM (both ROM and RAM are externally expandable to 64 kbytes), four 8-bit ports, two 16-bit timer/counter, an I2C serial interface, a thirteen source two priority level nested interrupt structure, and on-chip oscillator circuitry suitable for quartz crystal, ceramic resonator, RC, or LC. The device operates over a wide range of supply voltages and has low power consumption.
The 8xCL410 has two reduced power modes that are the same as those on the standard 80C51.
The special reduced power feature of P83CL410 is that it can be stopped and then restarted. Running from an external clock source, the clock can be stopped and after a period of time restarted. The 8xCL410 will resume operation from where P83CL410 was when the code stopped with no loss of internal state, RAM contents, or Special Function Register contents.
If the internal oscillator is used the P83CL410 cannot be stopped and started, but the Power-down mode can be used to achieve similar power savings, without loss of on-chip RAM and Special Function Register values. The Power-down mode can be terminated via an interrupt.
This data sheet details the specific properties of the P80CL410; P83CL410. For details of the 80C51 core see "Data Handbook IC20".
For emulation purposes, the P85CL000 (piggy-back version) with 256 bytes of RAM is recommended. Details are given in Chapter 22.
P83CL410 Data Sheet
