General Description
P89C51RC+ General Description
The 89C51RX+ devices contain a non-volatile FLASH program memory (up to 64 k bytes in the 89C51RD+) that is both parallel programmable and Serial In-System Programmable. In-System Programming allows devices to alter their own program memory, in the actual end product, under software control. This opens up a range of applications that can include the ability to field update the application firmware.
A default serial loader (boot loader) program in ROM allows In-System serial programming of the FLASH memory without the need for a loader in the FLASH code. User programs may erase and reprogram the FLASH memory at will through the use of standard routines contained in ROM.
These devices are Single-Chip 8-Bit Microcontrollers manufactured in advanced CMOS process and are derivatives of the 80C51 microcontroller family. All the devices have the same instruction set as the 80C51.
P89C51RC+ Maximum Ratings
| PARAMETER | RATING | UNIT |
| Operating temperature under bias | 0 to +70 or 40 to +85 | °C |
| Storage temperature range | -65 to +15 | °C |
| Voltage on EA/VPP pin to VSS | 0 to + 13.0 | V |
| Voltage on any other pin to VSS | 0.5 to +6.5 | V |
| Maximum IOL per I/O pin | 15 | mA |
| Power dissipation (based on package heat transfer, not device power consumption) | 1.5 | A |
1. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any conditions other than those described in the AC and DC Electrical Characteristics section
of this specification is not implied.
2. This product includes circuitry specifically designed for the protection of its internal devices from the damaging effects of excessive static
charge. Nonetheless, it is suggested that conventional precautions be taken to avoid applying greater than the rated maximum.
3. Parameters are valid over operating temperature range unless otherwise specified. All voltages are with respect to VSS unless otherwise noted.
P89C51RC+ Features
• 80C51 Central Processing Unit
• On-chip FLASH Program Memory with In-System Programming
(ISP) capability
• Boot ROM contains low level FLASH programming routines and a
default serial loader
• Speed up to 33 MHz
• Full static operation
• RAM expandable externally to 64 k bytes
• 4 level priority interrupt
• 7 interrupt sources, depending on device
• Four 8-bit I/O ports
• Full-duplex enhanced UART
Framing error detection
Automatic address recognition
• Power control modes
Clock can be stopped and resumed
Idle mode
Power down mode
• Programmable clock out
• Second DPTR register
• Asynchronous port reset
• Low EMI (inhibit ALE)
• Watchdog timer
• On-chip FLASH Program Memory with In-System Programming
(ISP) capability
• Boot ROM contains low level FLASH programming routines and a
default serial loader
• Speed up to 33 MHz
• Full static operation
• RAM expandable externally to 64 k bytes
• 4 level priority interrupt
• 7 interrupt sources, depending on device
• Four 8-bit I/O ports
• Full-duplex enhanced UART
Framing error detection
Automatic address recognition
• Power control modes
Clock can be stopped and resumed
Idle mode
Power down mode
• Programmable clock out
• Second DPTR register
• Asynchronous port reset
• Low EMI (inhibit ALE)
• Watchdog timer

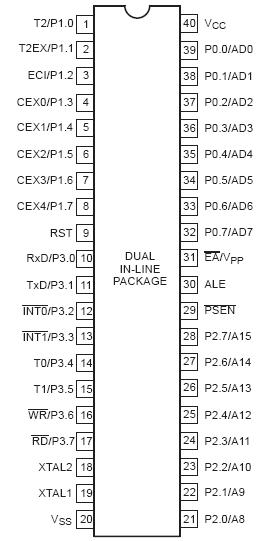

P89C51RC+ Connection Diagram
