MFG:ERICSSON Package Cooled:PDIP
MFG: ERICSSON
Package Cooled: PDIP
Description: PBL 3770A is a bipolar monolithic circuit intended to control and drive the current in one winding of ...
PBL 3770A is a bipolar monolithic circuit intended to control and drive the current in one winding of a stepper motor. It is a high power version of PBL 3717 and special care has been taken to optimize the power handling capability without suffering in reliability.
The circuit consists of a LS-TTL compatible logic input stage, a current sensor, a monostable multivibrator and a high power H-bridge output stage. The circuit is pin-compatible with the PBL 3717 industry-standard driver.
Two PBL 3770A and a small number of external components form a complete control and drive unit for LS-TTL or microprocessor-controlled stepper motor systems.
|
Parameter |

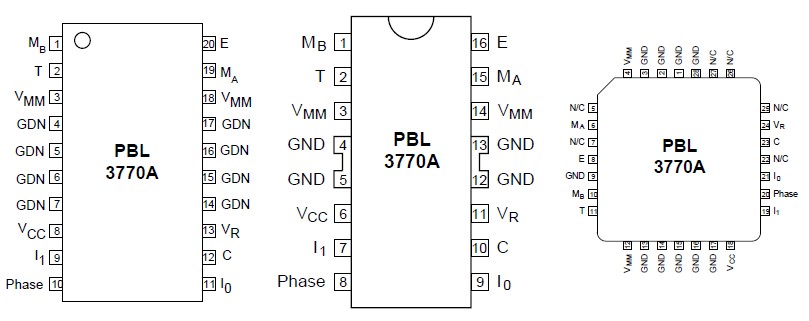

Pin no. [DIL package] |
Symbol |
Min. |
Max. |
Unit |
| Voltage | |||||
| Logic supply |
6 |
VCC |
0 |
7 |
V |
| Motor supply |
3, 14 |
VMM |
0 |
45 |
V |
| Logic inputs |
7,8,9 |
VI |
-0.3 |
6 |
V |
| Comparator input |
10 |
VC |
-0.3 |
VCC |
V |
| Reference input |
11 |
VR |
-0.3 |
15 |
V |
| Current | |||||
| Motor output current |
1, 15 |
IM |
-1800 |
+1800 |
mA |
| Logic inputs |
7,8,9 |
II |
-10 |
mA | |
| Analog inputs |
10,11 |
IA |
-10 |
mA | |
| Temperature | |||||
| Operating junction temperature |
TJ |
-40 |
+150 |
||
| Storage temperature |
Ts |
-55 |
+150 |
