Purchase PC3H7J00000F, In-stock PC3H7J00000F From SeekIC.

MFG:Sharp Microelectronics (VA)  Category:Isolators

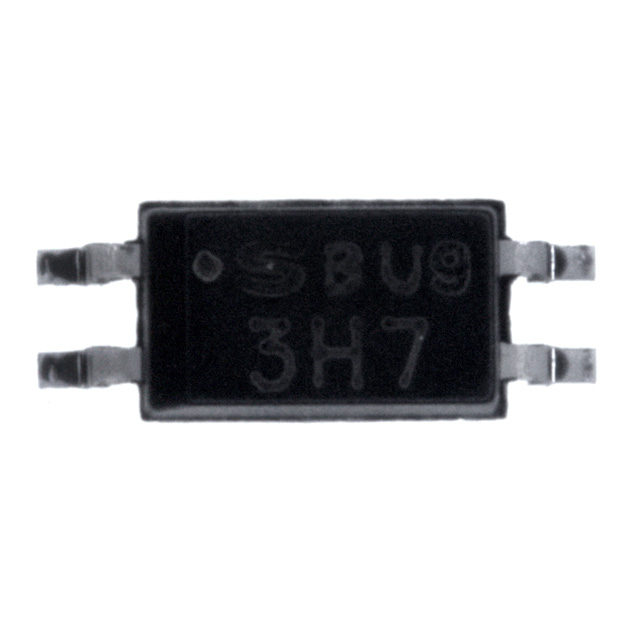

PC3H7J00000F Product Image

PC3 Series Datasheet download

Five Points

Part Number: PC3H7J00000F

Category: Isolators

MFG: Sharp Microelectronics (VA)





Descriptions: PHOTOCOUPLER TRAN OUT 4-SMD

Price Break

1
10
100
500
1000

Unit Price

.45000
.37500
.30000
.24900
.22500

Extended Price

0.45
3.75
30.00
124.50
225.00

(All prices are in USD) Prices for reference only
Urgent Purchase

PC3H7J00000F General Description

PHOTOCOUPLER TRAN OUT 4-SMD

PC3H7J00000F Parameters

Technical/Catalog InformationPC3H7J00000F
VendorSharp Microelectronics (VA)
CategoryIsolators
Isolation Voltage2500Vrms
Input TypeDC
Output TypeTransistor
Current - Output/Channel50mA
Voltage - Output80V
Vce Saturation (Max)200mV
Current Transfer Ratio (Min)20% @ 1mA
Mounting TypeSurface Mount
Package / Case4-SMD
PackagingCut Tape (CT)
Number of Circuits1 - Single
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PC3H7J00000F
PC3H7J00000F
425 2116 1 ND
42521161ND
425-2116-1

PC3H7J00000F datasheet

PC30/25-0&FP30/25
PDF/DataSheet Download
