General Description
PC87332VLJ (3.3V/5V) General Description
The PC87332VLJ and PC87332VLJ-5 are single chip solutions for most commonly used I/O peripherals in ISA, EISA and MicroChannelÉ based computers. It incorporates a Floppy Disk Controller (FDC), two full featured UARTs, an IEEE 1284 compatible parallel port and all the necessary control logic for an IDE interface. Standard PC-ATÉ address decoding for all the peripherals and a set of configuration registers are also implemented in this highly integrated member of the SuperI/O family. Advanced power management features and mixed voltage operation in the VLJ version make the PC87332 chips an ideal for low-power and/or portable personal computer applications.
The PC87332 FDC uses a high performance digital data separator eliminating the need for any external filter components. It is fully compatible with the PC8477 and incorporates a superset of DP8473, NEC mPD765 and N82077 floppy disk controller functions. All popular 5.25× and 3.5× floppy drives, including the 2.88 MB 3.5× floppy drive, are supported. In addition, automatic media sense and 2 Mbps tape drive support are provided by the FDC. The two UARTs are fully NS16450 and NS16550 compatible. Both ports support MIDI baud rates.
PC87332VLJ (3.3V/5V) Maximum Ratings
Supply Voltage (VDD) ....... -0.5V to + 7.0V
Input Voltage (VI)....... -0.5 to VDD + 0.5V
Output Voltage (VO) ......-0.5 to VDD + 0.5V
Storage Temperature (TSTG) . -65°C to + 165°C
Power Dissipation (PD) ..............1W
Lead Temperature (TL)
(Soldering, 10 seconds) .......... +260°C
Input Voltage (VI)....... -0.5 to VDD + 0.5V
Output Voltage (VO) ......-0.5 to VDD + 0.5V
Storage Temperature (TSTG) . -65°C to + 165°C
Power Dissipation (PD) ..............1W
Lead Temperature (TL)
(Soldering, 10 seconds) .......... +260°C
PC87332VLJ (3.3V/5V) Features
· Floppy Disk Controller:
- Software compatible with the DP8473, the 765A and the N82077
- 16-byte FIFO (disabled by default)
- Burst and Non-Burst modes
- Perpendicular Recording drive support
- New high-performance internal digital data separator (no external filter components required)
- Low-power CMOS with enhanced power-down mode
- Automatic media-sense support
- Supports fast 2 Mbps and standard 1 Mbps/ 500 kbps/250 kbps tape drives
· Bidirectional Parallel Port:
- Enhanced Parallel Port (EPP) compatible
- Extended Capabilities Port (ECP) compatible, including level 2 support
- Bidirectional under either software or hardware control
- Ability to multiplex FDC signals on parallel port pins allows use of an external Floppy Disk Drive (FDD)
- Includes protection circuit to prevent damage to the parallel port when a connected printer is powered up or is operated at a higher voltage
- Software compatible with the DP8473, the 765A and the N82077
- 16-byte FIFO (disabled by default)
- Burst and Non-Burst modes
- Perpendicular Recording drive support
- New high-performance internal digital data separator (no external filter components required)
- Low-power CMOS with enhanced power-down mode
- Automatic media-sense support
- Supports fast 2 Mbps and standard 1 Mbps/ 500 kbps/250 kbps tape drives
· Bidirectional Parallel Port:
- Enhanced Parallel Port (EPP) compatible
- Extended Capabilities Port (ECP) compatible, including level 2 support
- Bidirectional under either software or hardware control
- Ability to multiplex FDC signals on parallel port pins allows use of an external Floppy Disk Drive (FDD)
- Includes protection circuit to prevent damage to the parallel port when a connected printer is powered up or is operated at a higher voltage

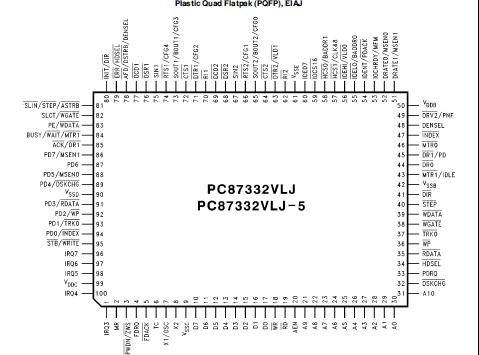

PC87332VLJ (3.3V/5V) Connection Diagram
