PC87109

Features: · Compatible with 16550 and 16450 devices· Extended UART mode· Sharp-IR with selectable internal or external modulation· IrDA 1.0 SIR with up to 115.2 Kbaud data rate· IrDA 1.1 MIR and FIR with 0.576, 1.152 and 4.0 Mbps data rates· Consumer Electronics IR mode· UART mode data rates up to...

product image

PC87109 Picture
See larger image
SeekIC No. : 004456123 Detail

PC87109: Features: · Compatible with 16550 and 16450 devices· Extended UART mode· Sharp-IR with selectable internal or external modulation· IrDA 1.0 SIR with up to 115.2 Kbaud data rate· IrDA 1.1 MIR and FIR...

PC87109 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PC87109
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Compatible with 16550 and 16450 devices
· Extended UART mode
· Sharp-IR with selectable internal or external modulation
· IrDA 1.0 SIR with up to 115.2 Kbaud data rate
· IrDA 1.1 MIR and FIR with 0.576, 1.152 and 4.0 Mbps data rates
· Consumer Electronics IR mode
· UART mode data rates up to 1.5 Mbps
· Back-to-Back infrared frame transmission and reception
· Full duplex infrared frame transmission and reception
· Transmit deferral
· Automatic fallback to 16550 compatibility mode
· Selectable 16 or 32 level FIFOs
· 12-bit timer for infrared protocol support
· Programmable IRQ and DMA signals polarity
· Support for power management
· 5V or 3.3V operation with back drive protection
· 32-pin TQFP package


Pinout

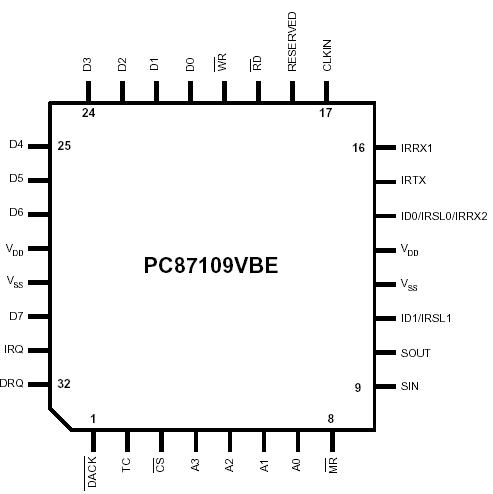

Connection Diagram


Specifications

Supply Voltage (VDD)  . . . . . . . . . .-0.5V to + 7.0V
Input Voltage (VI)  . . . . . . . . .  -0.5 to VDD + 0.5V
Output Voltage (VO)  . . . . . . . ..-0.5 to VDD + 0.5V
Storage Temperature (TSTG) .  . -65ºC to + 165ºC
Power Dissipation (PD)  . . . . . . . . . . . . . . .. . . .1W
Lead Temperature (TL)
(Soldering, 10 seconds)  . . . . . . . . . . . . .. .+260ºC
ESD Tolerance (Note 2)  . . . . . . . . . . .  .1500V min.
CZAP  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100 pF
RZAP  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5 k•
Note 1: Absolute maximum ratings indicate limits beyond which permanent damage may occur. Continuous operation at these limits are not intended; operation should be limited to those conditions specified under electrical characteristics.
Note 2: Value based on test complying with NSC SOP5-028 human body model ESD testing using the ETS-910 tester.
Note 3: Unless otherwise specified all voltages are referenced to ground.






Description

The PC87109 is a serial communication device with infrared capability. It supports 6 modes of operation and is backward compatible with the 16550 and 16450 (except for the MODEM control functions). The operational modes are: UART, Sharp-IR, IrDA 1.0 SIR, IrDA 1.1 MIR and FIR, and Consumer Electronics IR (also referred to as TV Remote or Consumer Remote Control).

In order to support existing legacy software based upon the 16550 UART, the PC87109 provides a special fallback mechanism that automatically switches the device to 16550 compatibility mode when the baud generator divisor is accessed through the legacy ports in bank 1.

PC87109 architecture has been optimized to meet the requirements of a variety of UART and infrared based applications. DMA support for all operational modes has been incorporated into the architecture.

PC87109 uses one DMA channel. One channel is required for infrared based applications since infrared communications work in half duplex fashion.

To further ease driver design of PC87109 and simplify the implementation of infrared protocols, a 12-bit timer with 125ms resolution has also been included.
