PC87200 General Description


The PC87200 Enhanced Integrated PCI-to-ISA bridge works with an LPC chipset to provide ISA slot support. It is a complement to the National Semiconductor PC8736x Super I/O family.

PC87200 Maximum Ratings

Parameter Min Max Units Comment
Operating Case Temperature   110 °C
Storage Temperature -65 150 °C No Bias
Supply Voltage   4.0 V
Voltage On Any Pin: -0.5 5.5 V

PC87200 Features

· Functionally compatible with Intel 82380AB
· 5.0 V tolerant PCI and ISA interfaces
· Slave mode serialized IRQ support for both quiet and continuous modes
· PC/PCI DMA support
· 32-bit address decode for the 1MB BIOS ROM
· Supports ISA bus mastering
· 160-pin PQFP package
· PCI 2.1 compliant 33 MHz bus
· Supports PCI initiator-to-ISA and ISA master-to-PCI cycle translations
· Subtractive agent for unclaimed transactions (see the PROHIBIT signal description for exceptions)
· Parallel to Serial IRQ conversion including IRQ3,4,5,6,7,9,10,11,12,14,15
· Supports 4 ISA slots directly without buffering
· Programmable ISA clock (8.33 to 11 MHz)
· Slow slew rate on edges

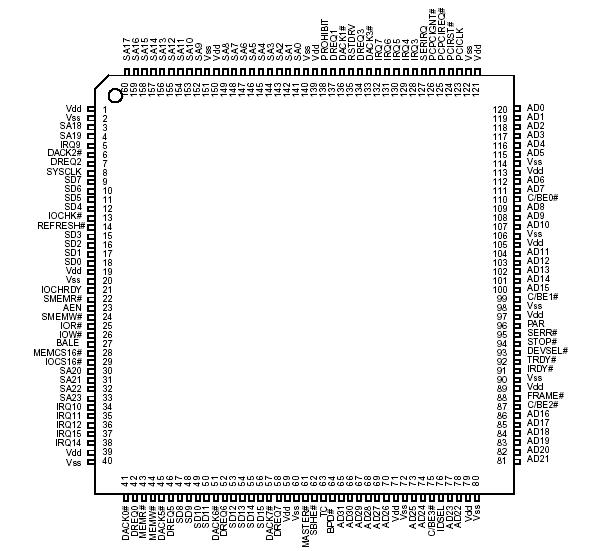

PC87200 Connection Diagram
