PC910X
-
Suppliers
DataSheet
General Description
PC910X Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit | |
|
Input |
*1Forward current |
IF |
20 |
mA |
|
Reverse voltage |
VR |
5 |
V | |
|
Power dissipation |
P |
40 |
mW | |
|
Output |
*2Supply voltage |
VCC |
7 |
V |
|
*3 Enable voltage |
VE |
5.5 |
V | |
|
High level output voltage |
IOH |
7 |
V | |
|
Low level output current |
IOL |
50 |
mA | |
|
Collector power dissipation |
PC |
85 |
mW | |
|
*4 Isolation voltage |
Viso |
2 500 |
Vrms | |
|
Operating temperature |
T opr |
0 to + 70 |
°C | |
|
Storage temperature |
T stg |
-55 to + 125 |
°C | |
|
*5Soldering temperature |
T sol |
260 |
°C | |
*2 For 1 minute max.
*3 Shall not exceed 500mV from supply voltage (VCC).
*4 AC for 1minute, 40 to 60% RH. Apply the specified voltage between the whole of the electrode pins on the input side and the whole of the electrode pins on the output side.
*5 For 10 seconds at the position of 2mm or more from lead pins.
PC910X Features
· Ultra-high speed response ( tPHL , t PLH : TYP. 50ns at RL = 350W)
· Isolation voltage between input and output ( Viso : 2 500Vrms )
· Low input current drive ( IFHL : MAX. 5mA )
· Instantaneous common mode rejectionvoltage (CM H : TYP. 500V/ m s )
· TTL and LSTTL compatible output
· Recognized by UL, file No. E64380
· Isolation voltage between input and output ( Viso : 2 500Vrms )
· Low input current drive ( IFHL : MAX. 5mA )
· Instantaneous common mode rejectionvoltage (CM H : TYP. 500V/ m s )
· TTL and LSTTL compatible output
· Recognized by UL, file No. E64380
PC910X Typical Application
· High speed interfaces for computer peripherals and microcomputer systems
· High speed line receivers
· Noise-cut
· Interfaces with various data transmission equipment
· High speed line receivers
· Noise-cut
· Interfaces with various data transmission equipment
PC910X
PDF/DataSheet Download
- Datasheet: PC910X
- File Size: 67920 KB
- Manufacturer: SHARP [Sharp Electrionic Components]
- Click here to Download
- ·PC900
- SHARP [Sharp Electrionic Components]
- DEVICE SPECIFICATION FOR PHOTOCOUPLER
- 770524 KB
- ·PC9001E
- Optoelectronic
- 435470 KB
- ·PC9001G
- Optoelectronic
- 435470 KB
- ·PC9001R
- Optoelectronic
- 435470 KB
- ·PC9001Y
- Optoelectronic
- 435470 KB
- ·PC9002G
- Optoelectronic
- 435470 KB
- ·PC9002R
- Optoelectronic
- 435470 KB
- ·PC9002RG
- Optoelectronic
- 435470 KB
PC910X Relative Products

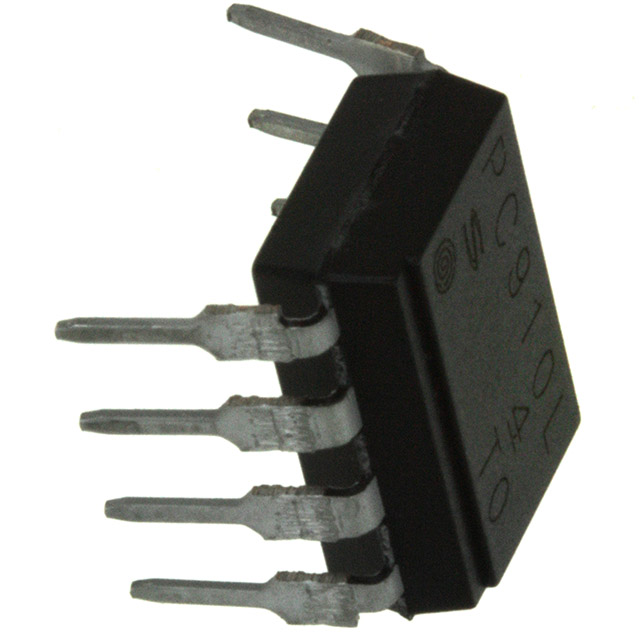

PC910L0YSZ0F
