Part Number: PCA8516

MFG: PHILPS

Package Cooled: SMD

D/C: 07/08+

Description: The PCA8516 is a member of the PCA85XX CMOS family and is an on-screen character display generator controlled by a micr...

PCA8516 General Description

The PCA8516 is a member of the PCA85XX CMOS family and is an on-screen character display generator controlled by a microcontroller via the on-chip fast I2C-bus interface or the on-chip High-speed 3-wire serial interface. It is suitable for use in high-end TV or camrecorder
applications and has also been designed for use in conventional mid-end TV with advanced graphic features.

PCA8516 Features

` Display RAM: 256 *13 bits
` Display character fonts: 253 (fixed in ROM, mask programmable)
` Starting position of the first character displayed: 64 vertical and 64 horizontal starting positions can be selected by software
` Character size: 4 different character sizes on a line-by-line basis (1 dot = 1H/1V; 2H/2V; 3H/3V and 4H/4V)
` Character matrix: 12*18 with no spacing between characters and no rounding function
` Foreground colours: 16 combinations of Red, Green, Blue and Intensity on character-by-character basis
` Background/shadowing modes: 4 modes available, No background, Box shadowing, North-West shadowing and Frame shadowing (raster blanking) on frame basis
` Background colours: 16 combinations of Red, Green, Blue and Intensity on word-by-word basis. Available when background mode is in either the Box shadowing, North-West shadowing or Frame shadowing mode
` OSD oscillator: on-chip Phase-Locked Loop (PLL)
` Character blinking ratio: 1 : 1, 1 : 3 and 3 : 1
(programmable frequency of ¹/16, ¹/32, ¹/64 or ¹/128 of f_VSYNC) on character basis
` Display format: flexible display format by using the Carriage Return Code, maximum number of characters per line is also flexible and depends upon the OSD clock frequency
` Spacing between lines: 4 choices comprising 0, 4, 8 and 12 horizontal scan lines
` Display character RAM address auto-post-increment when writing data
` Fast I2C-bus serial interface (400 kbaud) or High-speed 3-wire serial interface (1 Mbaud) for data/command transfer
` ACM (Active Character Monitor) specifically for use in camcorder applications on word basis; can also be used as a 5th colour control with R, G, B and I signals
` Programmable active input polarity of HSYNC and VSYNC
` Programmable output polarity of R, G, B, I and FB
` Supply voltage: 5 V ±10%
` Operating temperature: -20 to +70
` Package: SDIP24 or SO24.

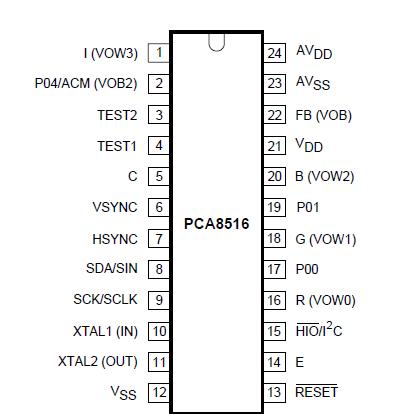

PCA8516 Connection Diagram
