Description: The PCM4202 is a high-performance, stereo audio analog-to-digital (A/D) converter designed for profess...
The PCM4202 is a high-performance, stereo audio analog-to-digital (A/D) converter designed for professional and broadcast audio applications. The PCM4202 architecture utilizes a 1-bit delta-sigma modulator per channel, incorporating a novel density modulated dither scheme for improved dynamic performance.
The PCM4202 supports 24-bit linear PCM output data,with sampling frequencies up to 216kHz. The PCM4202 can also be configured to output either 64x or 128x oversampled, 1-bit direct stream digital (DSD) data for each channel. Support for PCM and DSD output formats makes the PCM4202 suitable for a variety of digital audio recording and processing applications.
The PCM4202 includes a flexible audio serial port inter-face, which supports standard audio data formats. Audio data format selection, sampling mode configuration, and high-pass filter functions are all programmed using dedi-cated control pins.
The PCM4202 operates from a +5V analog power supply and a +3.3V digital power supply. The digital I/O pins are compatible with +3.3V logic families. The PCM4202 is available in a small SSOP-28 package.
|

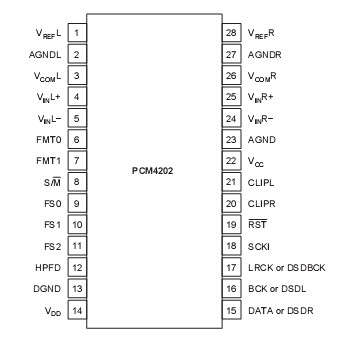

PCM4202 |
UNIT | ||
| Supply voltage | VCC |
+6.0 |
V |
| VDD |
+3.6 |
V | |
| Ground voltage differences | (any AGND to DGND) |
±0.1 |
V |
| Digital input voltage | FMT0, FMT1, S/M, FS0, FS1, FS2, SCKI, RST, HPFD, BCK, LRCK |
-0.3 to (VDD + 0.3) |
V |
| Analog input voltage | VIN L+, VIN L-, VIN R+, VIN R- |
-0.3 to (VCC + 0.3) |
V |
| Input current (any pin except supplies) |
±10mA |
V | |
| Operating temperature range |
-10 to +70 |
V | |
| Storage temperature range, TSTG |
-65 to +150 |
V | |
(1)Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied.
· Two High-Performance Delta-Sigma
· Analog-to-Digital Converters
- 24-Bit Linear PCM or 1-Bit Direct Stream Digital (DSD) Output Data
- Supports PCM Output Sampling Rates up to 216kHz
- Supports 64fS and 128fS DSD Output Data Rates
· Dynamic Performance: PCM Output
- Dynamic Range (VIN = -60dBFS,fIN = 1kHz, A-Weighted): 118dB
- THD+N (VIN = -0.5dB, fIN = 1kHz): -105dB
· Dynamic Performance: DSD Output, 64fS
- Dynamic Range (A-Weighted): 115dB
- THD+N (VIN = -0.5dB, fIN = 1kHz): -102dB
· Audio Serial Port
- 24-Bit Linear PCM Output Data
- Master or Slave Mode Operation
- Supports Left-Justified, Right-Justified,and I2S Data Formats
· Additional PCM Output Features:
- Linear-Phase Digital Decimation Filter
- Digital High-Pass Filter for DC Removal
- Clipping Flag Output for Each Channel
· Power Supplies: +5V Analog and +3.3V Digital
· Power Dissipation:
- fS = 48kHz: 308mW typical
- fS = 96kHz: 338mW typical
- fS = 192kHz: 318mW typical
· Power-Down Mode
· Available in a SSOP-28 Package
· Pin- and Function-Compatible with the PCM1804
· Digital Recorders and Mixing
· Desks Digital Audio Effects Processors
· Broadcast Studio Equipment
· Surround-Sound Encoders
· High-End A/V Receivers
PCM4202
PDF/DataSheet Download
IC ADC 24BIT 1CH AUDIO 16-TSSOP
IC ADC 24BIT 1CH AUDIO 16-TSSOP
IC ADC 24BIT 1CH AUDIO 16-TSSOP
IC ADC 24-BIT AUDIO 1CH 16-TSSOP

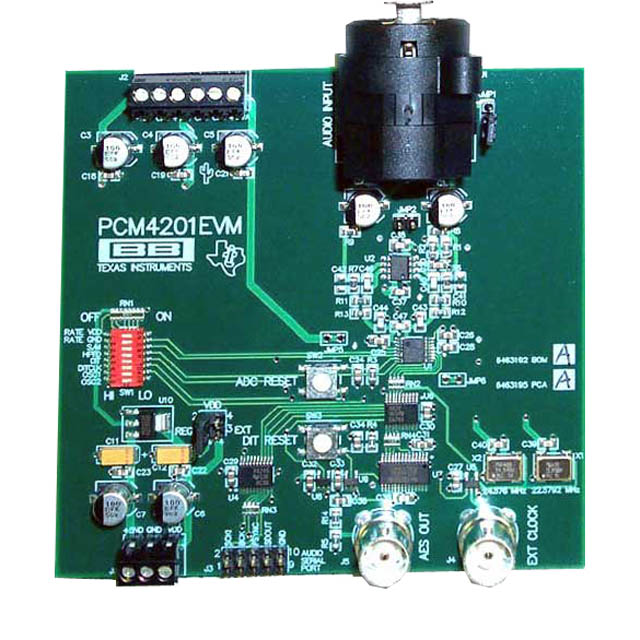

EVALUATION MODULE FOR PCM4201
