PDI1394P25

` Fully supports provisions of IEEE 13941995 Standard for high performance serial bus and the P1394a2000 Standard<sup>1</sup>
` Fully interoperable with Firewire^(TM) and i.LINK^(TM) implementations of the IEEE 1394 Standard.²
` Full P1394a support includes:
  Connection debounce
  Arbitrated short reset
  Multispeed concatenation
  Arbitration acceleration
  Fly-by concatenation
  Port disable/suspend/resume
` Provides one 1394a fully-compliant cable port at 100/200/400 Mbps. Can be used as a one port PHY without the use of any extra external components
` Fully compliant with Open HCI requirements
` Cable ports monitor line conditions for active connection to remote node.
` Power down features to conserve energy in battery-powered applications include:
  Automatic device power down during suspend
  Device power down terminal
  Link interface disable via LPS
  Inactive ports powered-down
` Logic performs system initialization and arbitration functions
` Encode and decode functions included for data-strobe bit level encoding
` Incoming data resynchronized to local clock
` Single 3.3 volt supply operation
` Minimum VDD of 2.7 V for end-of-wire power-consuming devices *While unpowered and connected to the bus, will not drive TPBIAS on a connected port, even if receiving incoming bias voltage on that port
` Supports extended bias-handshake time for enhanced interoperability with camcorders
` Interface to link-layer controller supports both low-cost bus-hold isolation and optional Annex J electrical isolation
` Data interface to link-layer controller through 2/4/8 parallel lines 49.152 MHz
` Low-cost 24.576 MHz crystal provides transmit, receive data at 100/200/400 Mbps, and link-layer controller clock at 49.152 MH
` Does not require external filter capacitors for PLL
` Interoperable with link-layer controllers using 3.3 V and 5 V supplies
` Interoperable with other Physical Layers (PHYs) using 3.3 V an 5 V supplies
` Node power class information signaling for system power management
` Cable power presence monitoring
` Separate cable bias (TPBIAS) for each port
` Register bits give software control of contender bit, power class bits, link active bit, and 1394a features
` LQFP package is function and pin compatible with the Texas Instruments TSB41LV01E^(TM) and TSB41AB1^(TM) (PAP package) 400 Mbps PHYs.

NOTE:
1. Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

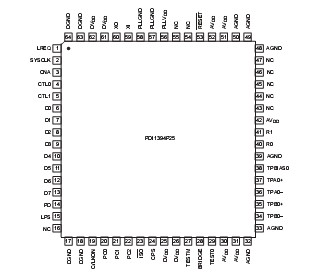

The PDI1394P25 provides the digital and analog transceiver functions needed to implement a one port node in a cable-based IEEE 13941995 and/or 1394a network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining connection status, for initialization and arbitration, and for packet reception and transmission. The PDI1394P25 is designed to interface with a Link Layer Controller (LLC), such as the PDI1394L40 or PDI1394L41.
