PDIUSBP11A
-
Suppliers
DataSheet
General Description
PDIUSBP11A General Description
The PDIUSBP11A is a one chip generic USB transceiver. It is designed to allow 5.0V or 3.3V programmable and standard logic to interface with the physical layer of the Universal Serial Bus. It is capable of transmitting and receiving serial data at both full speed (12Mbit/s) and low speed (1.5Mbit/s) data rates.
The pinout conforms with the "Serial Interface Engine".
Implementation of the Serial Interface Engine along with the USB transceiver allows the designer to make USB compatible devices with off-the-shelf logic and easily modify and update the application.
The PDIUSBP11A is backward compatible to the PDIUSBP11 and allows for single-ended data interfacing.
PDIUSBP11A Maximum Ratings
|
SYMBOL |
PARAMETER |
CONDITIONS |
LIMITS |
UNIT | |
|
MIN |
MAX | ||||
|
VCC |
DC supply voltage |
0.5 |
+6.5 |
V | |
|
Ilatchup |
Latchup current |
VI < 0 or VI > VCC |
200 |
mA | |
|
VI |
DC input voltage |
Note 2 |
0.5 |
+5.5 |
V |
|
VI/O |
DC input voltage range for I/O's |
0.5 |
VCC +0.5 |
V | |
|
VO |
DC output voltage |
Note 2 |
0.5 |
VCC +0.5 |
V |
|
ICC , IGND |
DC VCC or GND current |
±100 |
mA | ||
|
TSTO |
Storage temperature range |
60 |
+150 |
||
|
PTOT |
Power dissipation per package |
mW | |||
NOTES:
1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not mplied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The input and output voltage ratings may be exceeded if the input and output clamp current ratings are observed.
PDIUSBP11A Features
` Complies with Universal Serial Bus specification 1.1
` Utilizes digital inputs and outputs to transmit and receive USB cable data
` Supports 12Mbit/s "Full Speed" and 1.5Mbit/s "Low Speed" seria data transmission
` Compatible with the VHDL "Serial Interface Engine" from USB Implementers' Forum
` Supports single-ended data interface
` Single 3.3V supply
` Available in SO-14, SSOP-14 and TSSOP-14 packages
PDIUSBP11A Connection Diagram
PDIUSBP11A
PDF/DataSheet Download
- Datasheet: PDIUSBP11A
- File Size: 123755 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
- ·PDI1284P11
- PHILIPS [Philips Semiconductors]
- 3.3V Parallel interface transceiver/buffer
- 143896 KB
- ·PDI1284P11DGG
- PHILIPS [Philips Semiconductors]
- 3.3V Parallel interface transceiver/buffer
- 143896 KB
- ·PDI1284P11DL
- PHILIPS [Philips Semiconductors]
- 3.3V Parallel interface transceiver/buffer
- 143896 KB
- ·PDI1284P11DL-T
- Single 8-bit Bus Transceiver
- 263486 KB
- ·PDI1394L11
- PHILIPS [Philips Semiconductors]
- 1394 AV link layer controller
- 301674 KB
- ·PDI1394L11BA
- PHILIPS [Philips Semiconductors]
- 1394 AV link layer controller
- 301674 KB
- ·PDI1394L11BA-S
- IEEE 1394 (Firewire) Bus Interface/Controller
- 2414731 KB
- ·PDI1394L21
- PHILIPS [Philips Semiconductors]
- 1394 full duplex AV link layer controller
- 351539 KB
PDIUSBP11A Relative Products
PDIUSBP11
The PDIUSBP11 is a one chip generic USB transceiver. It is designed to allow 5.0V or 3.3V programmable and standard logic to interface with the physical layer of the Universal Serial Bus. It is capable of transmitting and receiving serial data at both full s...
PDIUSBH12
The Universal Serial Bus Hub PDIUSBH12 is a cost and feature optimized second generation USB Hub with 2 downstream ports and 3 embedded functions (compound hub). It is normally used in any microcontroller-based system and communicates with the system microco...
PDIUSBH11A
The Universal Serial Bus Hub PDIUSBH11A is a cost and feature optimized second generation USB Hub with 4 downstream ports and 3 embedded functions (compound hub). It is normally used in any microcontroller-based system and communicates with the system microc...
PDIUSBH11
The Philips Semiconductors PDIUSBH11 is a compound USB hub IC (hub plus embedded function).PDIUSBH11 is used in a microcontroller based system and communicates with the system microcontroller over the I2C serial bus. This modular approach to implementing a h...

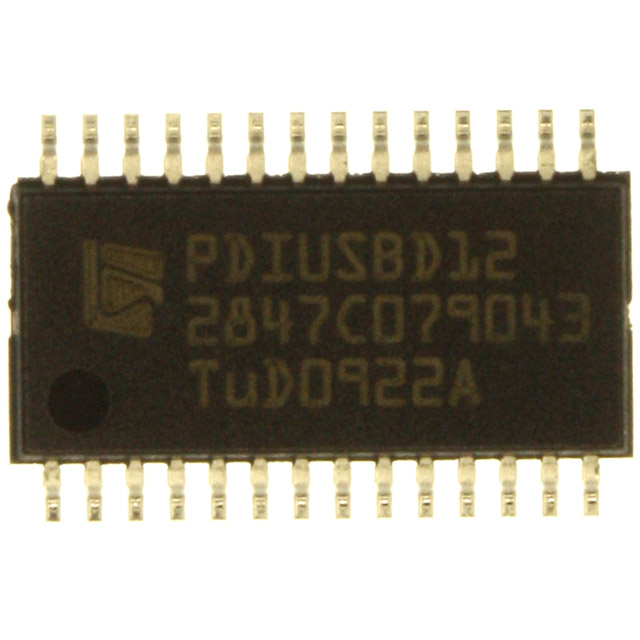

PDIUSBD12PWTM
