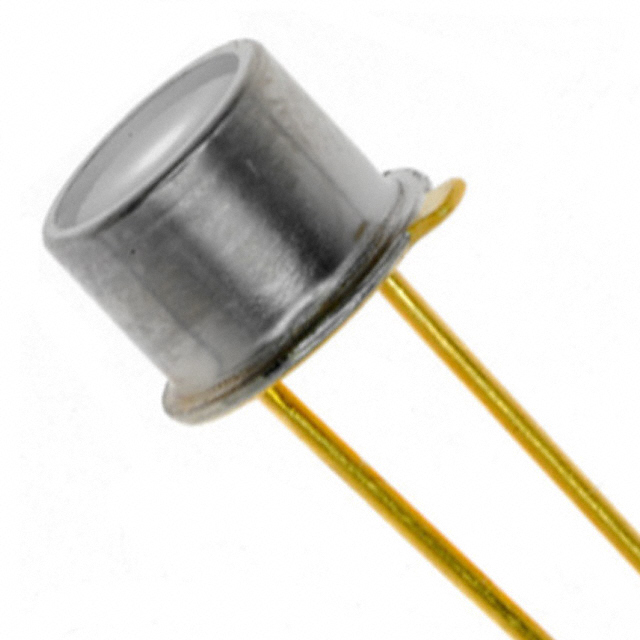

PDU-V104

Series: -
Color - Enhanced: -
Diode Type: PIN
Spectral Range: 350nm ~ 1100nm
Operating Temperature: -40°C ~ 125°C
Manufacturer: Advanced Photonix Inc
Voltage - DC Reverse (Vr) (Max): 75V
Response Time: 13ns
Package / Case: TO-46-2 Lens Top Metal Can
Responsivity @ nm: 0.18 A/W @ 365nm
Active Area: 2.64mm x 1.17mm
Wavelength: 190 ~ 1100nm
Current - Dark (Typ): 5pA
Viewing Angle: 65°


Parameters:

Technical/Catalog Information	PDU-V104
Vendor	Advanced Photonix Inc.
Category	Sensors, Sensor Evaluation Kits
Mounting Type	Through Hole
Package Name	TO-46
Viewing Angle	65° [Typ]
Wavelength	950 nm [Typ]
Short Circuit Current	35.00 A [Min]
Short Circuit Current	40.00 A [Typ]
Dark Current	10.0 pA [Max]
Dark Current	5.0 pA [Typ]
Operating Temperature	-40 °C [Min]
Operating Temperature	125 °C [Max]
Fall Time	450.000 ns [Typ]
Rise Time	450.00 ns [Typ]
Active Area	2.9800 mm2 [Nom]
Breakdown Voltage	5.00 V [Min]
Breakdown Voltage	10.00 V [Typ]
Diameter	4.6700 mm [Typ]
Height	3.810 mm [Typ]
Housing Material	Metal
Junction Capacitance	340 pF [Typ]
Lead Length	12.700 mm [Min]
Reverse Voltage	75.0 V [Max]
Sealing	Hermetically-sealed
Shape	Cylindrical, Flat Top
Termination Style	PC Pin
Type	Ultraviolet
Type	Photovoltaic
Type	Detector
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PDU V104 PDUV104
