Product Details

Description

Features:

• High-frequency operation:
1.5 GHz to 3.5 GHz
• Fixed divide ratio of 2
• Low-power operation: 13 mA
typical @ 3 V across frequency
• Small package: 8-lead SOIC
• Low Cost

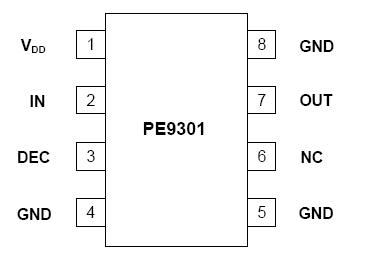

Pinout

Connection Diagram

Specifications

Symbol	Parameter/Conditions	Min	Max	Units
V_DD	Supply voltage		4.0	V
T_ST	Storage temperature range	-65	150	°C
T_OP	Operating temperature range	-40	85	°C
_{V_ESD}	ESD voltage (Human Body Model)		250	V

Description

The PE9301 is a high performance monolithic CMOS prescaler with a fixed divide ratio of 2. Its operating frequency range is 1.5 GHz to 3.5 GHz. The PE9301 operates on a nominal 3 V supply and draws only 13 mA. It is packaged in a small 8-lead SOIC and is ideal for Space microwave PLL synthesis solutions.

The PE9301 is manufactured in Peregrine's patentedUltra Thin Silicon (UTSi®) CMOS process, offering the performance of GaAs with the economy and integration of conventional CMOS.
