Product Details

Description



Features:

• High-frequency operation: 1.5 GHz to 3.5 GHz
• Fixed divide ratio of 8
• Low-power operation: 14 mA typical @ 3 V across frequency
• Small package: 8-lead formed flat pack

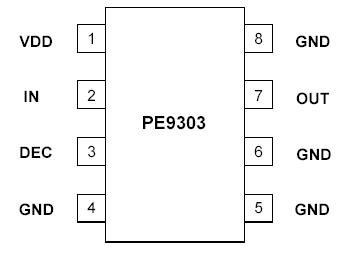

Pinout

Connection Diagram




Specifications

Symbol Parameter/Conditions Min Max Units
VDD Power supply voltage 4.0 V
TST Storage temperature range -65 150 °C
TOP Operating temperature
range		 -40 85 °C
VESD ESD voltage (Human Body
Model)		 250 250 V
PINMAX Maximum input power 10 dBm





Description

The PE9303 is a high performance monolithic CMOS prescaler with a fixed divide ratio of 8. Its operating frequency range is 1.5 GHz to 3.5 GHz. The PE9303 operates on a nominal 3 V supply and draws only 14 mA. It is packaged in a small 8-lead pre-formed flat pack and is ideal for space applications.

The PE9303 is manufactured in Peregrine's patented Ultra Thin Silicon (UTSi®) CMOS process, offering the performance of GaAs with the economy and integration of conventional CMOS.
