PEB20591
-
Suppliers
DataSheet
General Description
PEB20591 Maximum Ratings
| Parameter |
Symbol |
Limit Values |
Unit |
| Storage temperature |
Tstg |
65 to 150 |
°C |
| IC supply voltage |
VDD |
0.3 to 4.6 |
V |
| DC input voltage (except I/Os) |
VI |
0.3 to 6.0 |
V |
| DC output voltage (including I/Os); output in high or low state |
VO |
0.3 to VDD + 0.3 |
V |
| DC output voltage (including I/Os); output in tri-state |
VI, VO |
0.3 to 6.0 |
V |
| ESD robustness 1) HBM: 1.5 kΩ, 100 pF |
VESD,HBM |
2000 |
V |
protected against voltage stress > 1500 V (versus VS or GND).
Note: Stresses above those listed here may cause permanent damage to the
device. Exposure to absolute maximum rating conditions for extended
periods may affect device reliability.
Maximum ratings are absolute ratings; exceeding only one of these values
may cause irreversible damage to the integrated circuit.
PEB20591 Features
VIP is a universal ISDN transceiver IC for differentinterface modes (S/T or UPN).
• Eight 2B+D line interfaces with full duplex transceivers
S/T interfaces at 192 kbit/s with line transceivers according to ITU-T I.430, ETSI 300.012 and ANSI T1.605
UPN interfaces at 384 kbit/s with line transceivers according to ZVEI standard
Receive timing recovery
Conversion between pseudo-ternary and binary codes
Conversion between UPN or S/T frames and IOM-2000 frame structures
Execution of test loops
Frame alignment in trunk applications with maximum wander correction of ± 25 µs
UPN interface compatible to OCTAT-P (PEB 2096)1)
S/T interface compatible to QUAT-S (PEB 2084)2)
• IOM-2000 interface to DELIC supporting up to three VIPs (24 channels)
Transceiver initialization and configuration
Control of layer-1 activation/deactivation
Exchange of command and status information
• Signaling control for all VIP channels by dedicated HDLC controllers in DELIC
• Single 3.3 V power supply
• JTAG IEEE1149.1-compliant test interface with dedicated reset input
Note: UPN refers to a version of the UP0 interface (meeting the ZVEI standard) with a
reduced loop length of up to 1.3 km, depending on the type of cable.
• Eight 2B+D line interfaces with full duplex transceivers
S/T interfaces at 192 kbit/s with line transceivers according to ITU-T I.430, ETSI 300.012 and ANSI T1.605
UPN interfaces at 384 kbit/s with line transceivers according to ZVEI standard
Receive timing recovery
Conversion between pseudo-ternary and binary codes
Conversion between UPN or S/T frames and IOM-2000 frame structures
Execution of test loops
Frame alignment in trunk applications with maximum wander correction of ± 25 µs
UPN interface compatible to OCTAT-P (PEB 2096)1)
S/T interface compatible to QUAT-S (PEB 2084)2)
• IOM-2000 interface to DELIC supporting up to three VIPs (24 channels)
Transceiver initialization and configuration
Control of layer-1 activation/deactivation
Exchange of command and status information
• Signaling control for all VIP channels by dedicated HDLC controllers in DELIC
• Single 3.3 V power supply
• JTAG IEEE1149.1-compliant test interface with dedicated reset input
Note: UPN refers to a version of the UP0 interface (meeting the ZVEI standard) with a
reduced loop length of up to 1.3 km, depending on the type of cable.

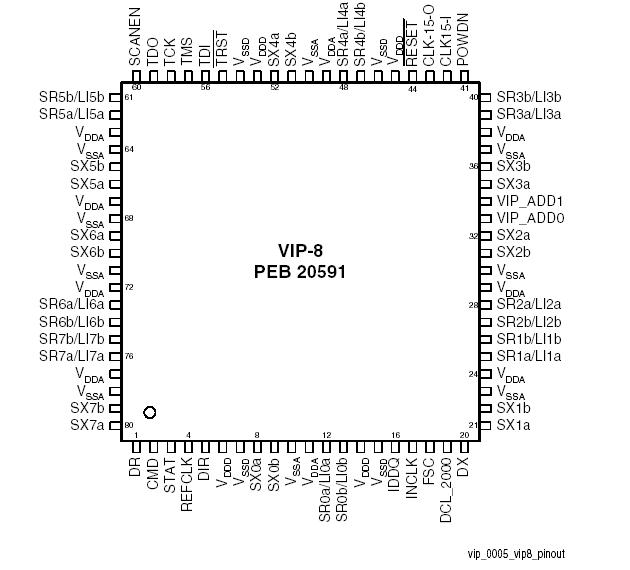

PEB20591 Connection Diagram
PEB20591
PDF/DataSheet Download
- Datasheet: PEB20591
- File Size: 1589307 KB
- Manufacturer: INFINEON [Infineon Technologies AG]
- Click here to Download
