PEF22554
-
Suppliers
DataSheet
General Description
PEF22554 Maximum Ratings
| Parameter | Symbol | Limit Values | Unit | |
| min. | max. | |||
| Ambient temperature under bias |
TA |
-40 |
85 |
°C |
| Storage temperature |
Tstg |
-65 |
125 |
°C |
| IC supply voltage (pads, digital) |
VDD |
0.3 |
V | |
| IC supply voltage (core, digital) |
VDDC |
0.3 |
V | |
| IC supply voltage PLL (analog) |
VDDP |
0.3 |
3.60 |
V |
| IC supply voltage receive (analog) |
VDDR |
0.3 |
1.98 |
V |
| IC supply voltage transmit (analog) |
VDDX |
0.3 |
3.60 |
V |
| Voltage on any pin with respect to ground1) |
VS |
0.3 |
3.60 |
V |
| ESD robustness HBM: 1.5 kΩ, 100 pF2) CDM 3) |
VESD,HBM VESD,CDM |
- - |
2000 500 |
V V |
| Moisture level 3 |
- |
2254) 2455) |
°C °C | |
2) According to JEDEC standard EIA/JESD22-A114-B-1997.
3) According to EOS/ESD Assn.Standard DS5.3-1993
4) According to IPS J-STD 020
5) According to IFX internal standard
Attention: If the 1.8 V power supply is externally driven on VDDC, the voltage on
this pin must never exceed the 3.3 V supply voltages on pins VDD, VDDP,
VDDX and VDDR, even during power up and power down of the circuit.
Attention: Stresses above those listed here may cause permanent damage to the
device. Exposure to absolute maximum rating conditions for extended
periods may affect device reliability.

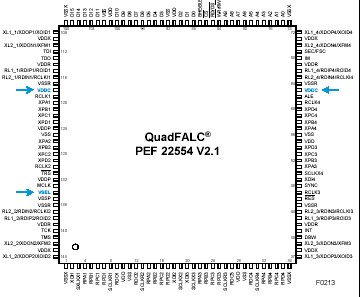

PEF22554 Connection Diagram
PEF22554
