Part Number: PEMZ7



MFG: NXP





Description: NPN/PNP low VCEsat transistor pair in a SOT666 plastic package.


Urgent Purchase

PEMZ7 General Description


NPN/PNP low VCEsat transistor pair in a SOT666 plastic package.

PEMZ7 Maximum Ratings

SYMBOL PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
Per transistor; for the PNP transistor with negative polarity
VCBO collector-base voltage
open emitter
-
15
V
VCEO collector-emitter voltage
open base
-
12
V
VEBO emitter-base voltage
open collector
-
6
V
IC collector current (DC)
-
500
mA
ICM peak collector current
-
1
A
IBM peak base current
-
100
mA
Ptot total power dissipation
Tamb 25 °C; note 1
-
200
mW
Tstg storage temperature
-65
+150
°C
Tj junction temperature
-
150
°C
Tamb operating ambient temperature
-65
+150
°C
Per device
Ptot total power dissipation
Tamb25 °C; note 1
-
300
mW
Note
1. Transistor mounted on an FR4 printed-circuit board.

PEMZ7 Features

· 300 mW total power dissipation
· Very small 1.6 ×1.2 mm ultra thin package
· Self alignment during soldering due to straight leads
· Low collector capacitance
· Low VCEsat
· High current capabilities
· Improved thermal behaviour due to flat leads
· Reduced required PCB area
· Reduced pick and place costs.

PEMZ7 Typical Application

· Heavy duty battery powered equipment (automotive, telecom and audio-video) such as motor and lamp drivers
· VCEsat critical applications such as latest low supply voltage IC applications
· All battery driven equipment, to save battery power.

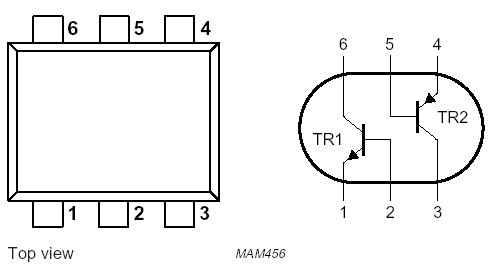

PEMZ7 Connection Diagram

PEMZ7 Connection Diagram
