Product Details

Description



Features:

· Uni-directional ESD protection of four lines or bi-directional ESD protection of 3 lines
· Reverse standoff voltage: 3.3 and 5 V
· Low diode capacitance
· Ultra low leakage current
· Ultra small SOT665 surface mount package
· ESD protection >20 kV
· IEC 61000-4-2; level 4 (ESD); 15 kV (air) or 8 kV (contact).


Application

· Cellular handsets and accessories
· Portable electronics
· Computers and peripherals
· Communication systems
· Audio and video equipment.


Pinout

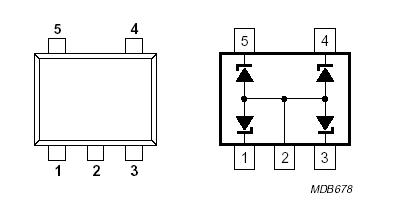

Connection Diagram


Specifications

Symbol Parameter
Conditions
Min
Max
Unit
Ipp peak pulse current
PESD3V3L4UW
PESD5V0L4UW
8/20 s notes 1, 2 and
-
-
3
2.5
A
A
Ppp peak pulse power
8/20 s notes 1, 2 and
-
30
W
IFSM non-repetitive peak forward current
tp = 1 ms; square pulse
-
3.5
A
IZSM non-repetitive peak reverse current
PESD3V3L4UW
PESD5V0L4UW
tp = 1 ms; square pulse
-
-
0.9
0.8
A
A
Ptot total power dissipation Tamb = 25 °C; note 3 - 250 mW
PZSM non-repetitive peak reverse power
dissipation		 tp = 1 ms; square pulse; see Fig.4 - 6 W
Tstg storage temperature   -65 +150 °C
Tj junction temperature   - 150 °C
ESD electrostatic discharge
IEC 61000-4-2 (contact discharge)
HBM MIL-Std 883
20
10
-
-
kV
kV
Notes
1. Non-repetitive current pulse 8/20 s exponentially decaying waveform see Fig.5.
2. Pins 1, 3, 4 or 5 to pin 2.
3. Device mounted on standard printed-circuit board.
