Features:

•ESD protection of up to four lines
•Very low diode capacitance
•Low clamping voltage
•Ultra low leakage current: I_RM = 3 nA
•ESD protection up to 12 kV
•IEC 61000-4-2; level 4 (ESD)

Application

•Computers and peripherals
•Audio and video equipment
•Cellular handsets and accessories
•Communication systems
•Portable electronics
•Subscriber Identity Module (SIM) card protection

Pinout

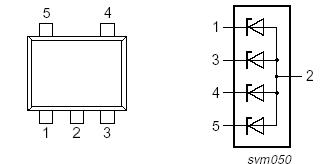

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Min	Max	Unit
P_PP	peak pulse power PESD3V3V4UW PESD5V0V4UW	8/20 s	[1][2]
P_PP	peak pulse power PESD3V3V4UW PESD5V0V4UW	8/20 s	- -	16 16	W W
I_PP	peak pulse current PESD3V3V4UW PESD5V0V4UW	8/20 s	[1][2]
I_PP	peak pulse current PESD3V3V4UW PESD5V0V4UW	8/20 s	- -	1.5 1.5	A A
T_j	junction temperature		-	150	°C
T_amb	ambient temperature		-65	+150	°C
T_stg	storage temperature		-65	+150	°C

[1] Non-repetitive current pulse 8/20 s exponential decay waveform according to IEC 61000-4-5; see Figure 1.
[2] Measured from pin 1, 3, 4 or 5 to 2.

Description

Very low capacitance quadruple ElectroStatic Discharge (ESD)PESDxV4UW protection diode arrays ultra small SOT665 plastic package designed to protect up to four signal lines from the damage caused by ESD and other transients.
