PF527G

BOARD LEVEL HEAT SINK

product image

PF527G Picture
See larger image
SeekIC No. : 003444257 Detail

PF527G: BOARD LEVEL HEAT SINK

PF527G Data Sheet

floor Price/Ceiling Price

US $ 4.57~4.57 / Piece | Get Latest Price
Part Number:
PF527G
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~750
  • Unit Price
  • $4.57
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Capacitance : 16.5 pF Series: -
Manufacturer: Aavid Thermalloy Type: Top Mount
Package Cooled: TO-3 Attachment Method: Bolt On
Shape: Rhombus Length: 1.606" (40.80mm)
Width: 1.060" (26.92mm) Diameter: -
Height Off Base (Height of Fin): 0.984" (25.00mm) Power Dissipation @ Temperature Rise: 6W @ 30°C
Thermal Resistance @ Forced Air Flow: 5°C/W @ 400 LFM Thermal Resistance @ Natural: 7.4°C/W
Material: Aluminum

Description

Attachment Method: Bolt On
Diameter: -
Material: Aluminum
Material Finish: Black Anodized
Series: -
Type: Top Mount
Height Off Base (Height of Fin): 0.984" (25.00mm)
Shape: Rhombus
Package Cooled: TO-3
Manufacturer: Aavid Thermalloy
Thermal Resistance @ Forced Air Flow: 5°C/W @ 400 LFM
Power Dissipation @ Temperature Rise: 6W @ 30°C
Width: 1.060" (26.92mm)
Thermal Resistance @ Natural: 7.4°C/W
Length: 1.606" (40.80mm)


Pinout

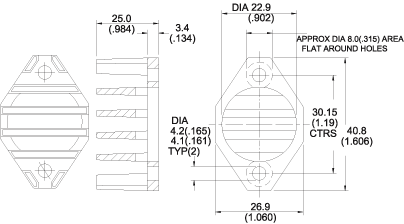

Connection Diagram


Specifications

Part # Description Finish Board Mounting
PF527G Diamond shaped heat sink Black Anodize N/A
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.




Description

Thermal Resistance 7.40

Thermal resistance value is based on a 75C rise in natural convection
