Product Details

Description



Features:

`Intended For Use With SLA7042M or SLA7044M
Microstepping, Unipolar PWM, High-Current Motor Drivers
`Supports Five Stepper-Motor Operating Modes
`P-Compatible Inputs

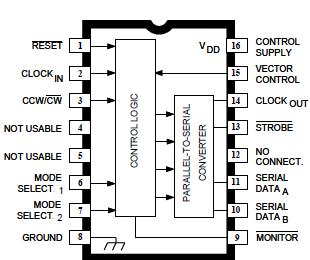

Pinout

Connection Diagram






Specifications

Supply Voltage, VDD.............. 7.0 V
Input Voltage Range,
VI ................ -0.5 V to VDD + 0.5 V
Input Current, II .............. ±10 mA
Output Voltage Range,
VO ............... -0.5 V to VDD + 0.5 V
Output Current, IO .......... ±15 mA
Operating Temperature Range,
TA .......................... -20 to +85
Storage Temperature Range,
TS ........................ -40 to +150
CAUTION: CMOS devices have input static protection but are susceptible to damage if exposed to extremely high static electrical charges.

Supply Voltage, VDD.............. 7.0 V
Input Voltage Range,
VI ................ -0.5 V to VDD + 0.5 V
Input Current, II .............. ±10 mA
Output Voltage Range,
VO ............... -0.5 V to VDD + 0.5 V
Output Current, IO .......... ±15 mA
Operating Temperature Range,
TA .......................... -20 to +85
Storage Temperature Range,
TS ........................ -40 to +150
CAUTION: CMOS devices have input static protection but are susceptible to damage if exposed to extremely high static electrical charges.




Description

The PG001M CMOS IC converts parallel-data signals from a lowcost, 8-bit microprocessor or microcontroller into a serial-data format compatible with the SLA7042M and SLA7044M power multi-chip modules to drive unipolar PWM, high-current stepper motors. The PG001M provides for five basic modes of operation:

1) normal, two-phase, full step (100% torque vector),
2) two-phase 'boosted' torque (141% torque vector),
3) half-step, constant torque operation (using a 2-1-2 output switching),
4) quarter-stepping utilizing ratioed currents for constant torque, and
5) microstepping (1/8th steps) for quiet, smooth, resonance-free motor performance.

The PG001M is supplied in a low-cost 16-pin dual in-line plastic package. It is rated for continuous operation over the temperature range of -20 to +85.
