General Description
PI3C3305 General Description
Pericom Semiconductor's PI3C3305 and PI3C3306 are 2.5V or 3.3 Volt, 2-bit bus switches designed with fast individual enables. When enabled via the associated Bus Enable (BE) pin, the "A" pin is directly connected to the "B" pin for that particular gate.
The bus switch introduces no additional propagation delay or additional ground bounce noise.
The PI3C3306 device has active LOW enables, and the PI3C3305 has active HIGH enables. It is very useful in switching signals that have high bandwidth (>400 MHz).
PI3C3305 Maximum Ratings
Storage Temperature .....................................................65°C to +150°C
Ambient Temperature with Power Applied .........................40°C to +85°C
Supply Voltage to Ground Potential ...................................... 0.5V to +4.6V
DC Input Voltage ................................................................. 0.5V to +5.5V
DC Output Current............................................................................... 20mA
Power Dissipation ..................................................................................0.5W
Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
Ambient Temperature with Power Applied .........................40°C to +85°C
Supply Voltage to Ground Potential ...................................... 0.5V to +4.6V
DC Input Voltage ................................................................. 0.5V to +5.5V
DC Output Current............................................................................... 20mA
Power Dissipation ..................................................................................0.5W
Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
PI3C3305 Features
• Near-Zero propagation delay
• 5 switches connect inputs to outputs
• High Bandwidth (>400 MHz)
• Rail-to-Rail, 3.3V or 2.5V Switching
• 5V I/O Tolerant
• 2.5V Supply Voltage Operation
• Permits Hot Insertion
• Packaging (Pb-free & Green Available): 8-pin 173-mil wide plastic TSSOP
8-pin 118-mil wide plastic MSOP
• 5 switches connect inputs to outputs
• High Bandwidth (>400 MHz)
• Rail-to-Rail, 3.3V or 2.5V Switching
• 5V I/O Tolerant
• 2.5V Supply Voltage Operation
• Permits Hot Insertion
• Packaging (Pb-free & Green Available): 8-pin 173-mil wide plastic TSSOP
8-pin 118-mil wide plastic MSOP
PI3C3305 Typical Application
• High Bandwidth Data Switching
• Hot Docking
• Hot Docking

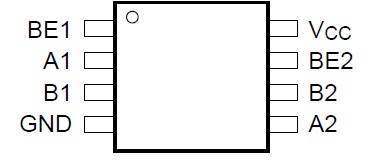

PI3C3305 Connection Diagram
PI3C3305
PDF/DataSheet Download
- Datasheet: PI3C3305
- File Size: 490941 KB
- Manufacturer: PERICOM [Pericom Semiconductor Corporation]
- Click here to Download
