MFG:PERICOM Package Cooled:STK D/C:0612+
MFG: PERICOM
Package Cooled: STK
D/C: 0612+
Description: Pericom Semiconducto's PI5A101 is an all-purpose analog switch designed for single-supply operation fr...
Pericom Semiconducto's PI5A101 is an all-purpose analog switch designed for single-supply operation from +2V to +6V. This switch is ideal for audio, video, and data switching and routing.
The PI5A101 is a quad SPST (single-pole, single-throw) NC (normally closed) function.
When on, each switch conducts current equally well in either direction. When off, they block voltages up to the power-supply rails.
The PI5A101 is fully specified with +5V and +3.3V supplies. With +5V the RON is 8 typical, making it ideal for replacing mechanical relays in data communications, test equipment, and instrumentation applications. Matching between channels is better than 2. RON flatness is better than 4 over the specified range.
These analog switches also offer wide bandwidth (>200 MHz high speed (TON >15ns), and low charge injection (Q >10pC).

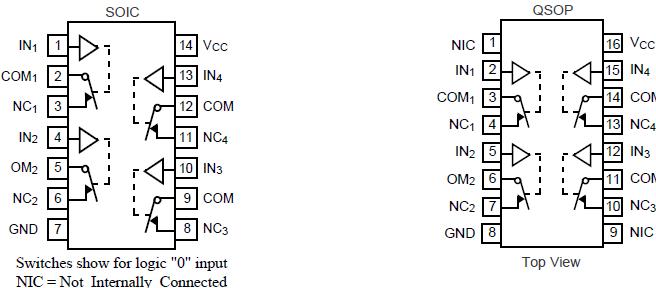

The PI5A101 is available in the narrow-body 14-pin small SOIC and 16-pin QSOP packages for operation over the industrial (40°C to +85°C) temperature range.
Voltages Referenced to GND
VCC .................................................................................0.5V to +7V
VIN, VCOM, VNC(1) ................................................ 0.5V to VCC +2V
...........................................................or 30mA, whichever occurs first
Current (any terminal except COM, NO, NC)............................30mA
Current: COM, NO, NC (pulsed at 1ms, 10% duty cycle) .......120mA
Continuous Power Dissipation
Narrow SO & QSOP (derate 8.7mW/ºC above +70ºC) ...........650mW
Storage Temperature ................................................. -65ºC to +150ºC
Lead Temperature (soldering, 10s) .......................................... +300ºC
Notes
1. Signals on NC, COM, or IN exceeding VCC or GND are clamped by internal diodes. Limit forward diode current to 0mA.
2. Caution: Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions beyond those ndicated in the operational sections of this specification is not implied.
