PI5C16210

Features:

• Near-zero propagation delay
• 5
 switches connect inputs to outputs
• Direct bus connection when switches are ON
• 32X384 function with flow through pinout make board layout easier
• Ultra-low quiescent power (0.5W typical) ideally suited for notebook applications
• Industrial operating temperature: 40°C to +85°C
• Packages available: 48-pin 150-mil wide plastic BQSOP (B) 48-pin 173-mil wide plastic TVSOP (K) 48-pin 240-mil wide plastic TSSOP (A) 48-pin 300-mil wide plastic SSOP (V)

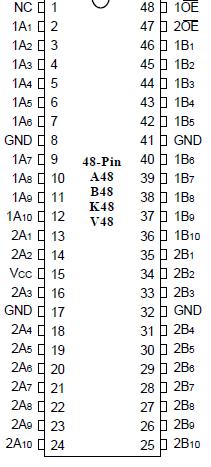

Pinout






Specifications

Product Specs: Voltage: 5V Function: 2-Port Pins: 48 Package: TSSOP (A48)BQSOP (B48)SSOP (V48) Pb-Free and Green: No - more info RoHS Material Declarations: PI5C16210AE MDR (pdf)PI5C16210BE MDR (pdf)PI5C16210KE MDR (pdf)PI5C16210VE MDR (pdf)

Above which the useful life may be impaired. For user guidelines, not tested.

Storage Temperature .................................................................. 65°C to +150°C
Ambient Temperature with Power Applied ................................. 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only) ........... 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) ....... 0.5V to +7.0V
DC Input Voltage ......................................................................... 0.5V to +7.0V
DC Output Current ................................................................................... 120 mA
Power Dissipation ......................................................................................... 0.5W

Note: tresses greater than those listed under MAXIMUM ATINGS may cause permanent damage o the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Description

20-Bit Bus Switch. Pericom Semiconductor's PI5C series of BusSwitch circuits are produced in the Company's advanced sub-micron CMOS technology, achieving industry leading speed.The PI5C16210 is configured as 20-bit, 2-port bus switches designed with a low ON resistance (5
) allowing inputs to be connected directly to outputs. The PI5C16210 bus switch creates no additional propagational delay or additional ground bounce noise. The switches are turned ON by the Bus Enable (xOE ) input signal.
