PI5C3245
-
Suppliers
DataSheet
General Description
PI5C3245 General Description
Pericom Semiconductor's PI5C series of logic circuits are produced using the Company's advanced submicron CMOS technology, achieving industry leading performance.
The PI5C3245 is a 8-bit, 2-port bus switch designed with a low ON resistance (5W) allowing inputs to be connected directly to outputs. The bus switch creates no additional propagational delay or additional ground bounce noise. The switches are turned on by the Bus Enable (BE ) input signal. The pinout is compatible with PI74FCT245T (Octal Bidirectional Transceiver).
PI5C3245 Maximum Ratings
Above which the useful life may be impaired. For user guidelines, not tested.
Storage Temperature ................................................................. 65°C to +150°C
Ambient Temperature with Power Applied ................................ 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only) .......... 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) ....... 0.5V to +7.0V
DC Input Voltage ......................................................................... 0.5V to +7.0V
DC Output Current ................................................................................... 120 mA
Power Dissipation ......................................................................................... 0.5W
Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
PI5C3245 Features
· Near zero propagation delay
· 5W switches connect inputs to outputs
· Direct bus connection when switches are on
· Ultra Low Quiescent Power (0.2µA Typical)
· Ideally suited for notebook applications
· Pin compatible with 74 series 245 logic devices
· Packages available: 20-pin 173 mil wide plastic TSSOP (L) 20-pin 300 mil wide plastic PDIP (P) 20-pin 150 mil wide plastic QSOP (Q) 20-pin 300 mil wide plastic SOIC (S)
· 5W switches connect inputs to outputs
· Direct bus connection when switches are on
· Ultra Low Quiescent Power (0.2µA Typical)
· Ideally suited for notebook applications
· Pin compatible with 74 series 245 logic devices
· Packages available: 20-pin 173 mil wide plastic TSSOP (L) 20-pin 300 mil wide plastic PDIP (P) 20-pin 150 mil wide plastic QSOP (Q) 20-pin 300 mil wide plastic SOIC (S)
PI5C3245 Connection Diagram
PI5C3245
PDF/DataSheet Download
- Datasheet: PI5C3245
- File Size: 163820 KB
- Manufacturer: PERICOM [Pericom Semiconductor Corporation]
- Click here to Download
- ·PI5A100
- PERICOM [Pericom Semiconductor Corporation]
- Precision, Wide-Bandwidth Quad SPDT Analog Switch
- 525000 KB
- ·PI5A100Q
- PERICOM [Pericom Semiconductor Corporation]
- Precision, Wide-Bandwidth Quad SPDT Analog Switch
- 525000 KB
- ·PI5A100QE
- PERICOM [Pericom Semiconductor Corporation]
- Precision, Wide-Bandwidth Quad SPDT Analog Switch
- 525000 KB
- ·PI5A100W
- PERICOM [Pericom Semiconductor Corporation]
- Precision, Wide-Bandwidth Quad SPDT Analog Switch
- 525000 KB
- ·PI5A101
- PERICOM [Pericom Semiconductor Corporation]
- Precision Wide-Bandwidth Analog Switch
- 457499 KB
- ·PI5A101Q
- PERICOM [Pericom Semiconductor Corporation]
- Precision Wide-Bandwidth Analog Switch
- 457499 KB
- ·PI5A101QE
- PERICOM [Pericom Semiconductor Corporation]
- Precision Wide-Bandwidth Analog Switch
- 457499 KB
- ·PI5A101W
- PERICOM [Pericom Semiconductor Corporation]
- Precision Wide-Bandwidth Analog Switch
- 457499 KB
PI5C3245 Relative Products

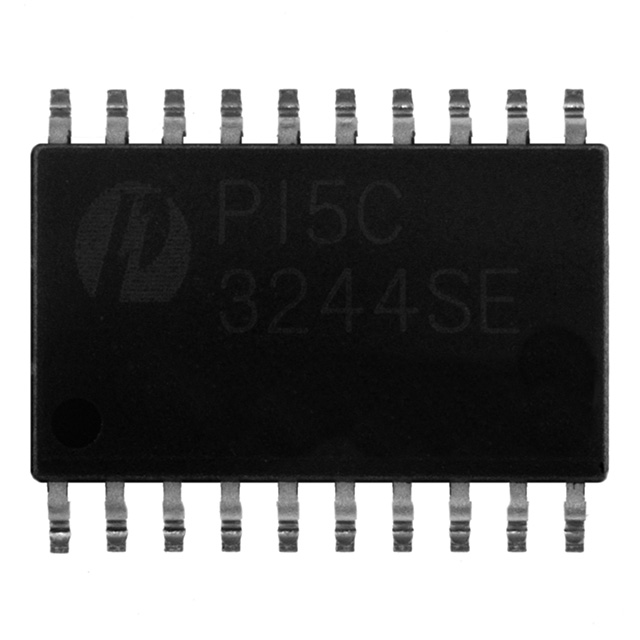

PI5C3244SE
