MFG:PERICOM Package Cooled:STK D/C:0614+
MFG: PERICOM
Package Cooled: STK
D/C: 0614+
Description: Pericom Semiconductor's PI5C series of logic circuits are produced in the Company's advanced 0.6 micro...
Pericom Semiconductor's PI5C series of logic circuits are produced in the Company's advanced 0.6 micron CMOS technology.

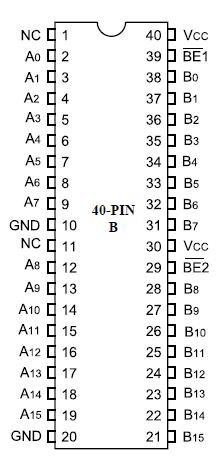

The PI5C32X2245 is a 16-bit, 2-port bus switch . Two enable signals (BEn) turn the switches on. The bus switch creates no additional propagational delay or additional ground bounce noise. The device has a built-in 25W resistor to reduce noise resulting from reflections, thus eliminating the need for an external terminating resistor.
Above which the useful life may be impaired. For user guidelines, not tested.
Storage Temperature ............................................................ 65°C to +150°C
Ambient Temperature with Power Applied ........................... 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only) .... 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) 0.5V to +7.0V
DC Input Voltage .................................................................. 0.5V to +7.0V
DC Output Current ............................................................................ 120 mA
Power Dissipation ................................................................................... 0.5W
Note: Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
PI5C32X2245
