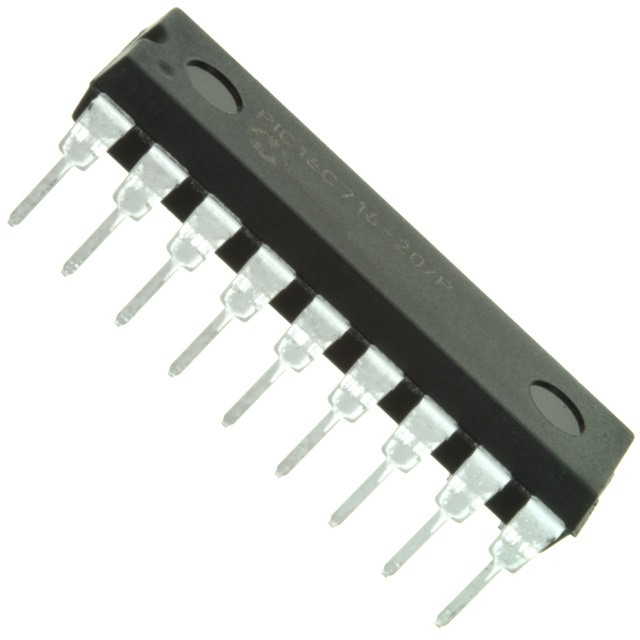

PIC16C716-20E/P Product Image

PIC Series Datasheet download

Five Points

Part Number: PIC16C716-20E/P

Category: Integrated Circuits (ICs)

MFG: Microchip Technology





Descriptions: IC MCU OTP 2KX14 A/D PWM 18DIP

Urgent Purchase

PIC16C716-20E/P General Description

IC MCU OTP 2KX14 A/D PWM 18DIP

PIC16C716-20E/P Parameters

Technical/Catalog InformationPIC16C716-20E/P
VendorMicrochip Technology
CategoryIntegrated Circuits (ICs)
Program Memory Size3.5KB (2K x 14)
RAM Size128 x 8
Number of I /O13
Package / Case18-DIP (300 mil)
Speed20MHz
Controller SeriesPIC16C
Oscillator TypeExternal
PackagingTube
Program Memory TypeOTP
EEPROM Size-
Core ProcessorPIC
Data ConvertersA/D 4x8b
Core Size8-Bit
Operating Temperature-40°C ~ 125°C
Connectivity-
PeripheralsBrown-out Detect/Reset, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)4 V ~ 5.5 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PIC16C716 20E P
PIC16C71620EP
