PIP250M

Features: ·Output current up to 15 A·Single supply 5 V operation·Fixed 300 kHz operating frequency·Voltage mode control·Minimum regulated output voltage 0.8 V·Internal soft start·Overcurrent protection·Overvoltage protection·Remote sensing.Application·High-current point-of-load regulation·Distribu...

product image

PIP250M Picture
See larger image
SeekIC No. : 004462645 Detail

PIP250M: Features: ·Output current up to 15 A·Single supply 5 V operation·Fixed 300 kHz operating frequency·Voltage mode control·Minimum regulated output voltage 0.8 V·Internal soft start·Overcurrent protect...

PIP250M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PIP250M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Output current up to 15 A
·Single supply 5 V operation
·Fixed 300 kHz operating frequency
·Voltage mode control
·Minimum regulated output voltage 0.8 V
·Internal soft start
·Overcurrent protection
·Overvoltage protection
·Remote sensing.


Application

·High-current point-of-load regulation
·Distributed power architectures
·Multiple output telecom power supplies
·Microprocessor and Digital Signal Processing (DSP) supplies
·Computer peripheral supplies
·Cable modems
·Set-top boxes.


Pinout

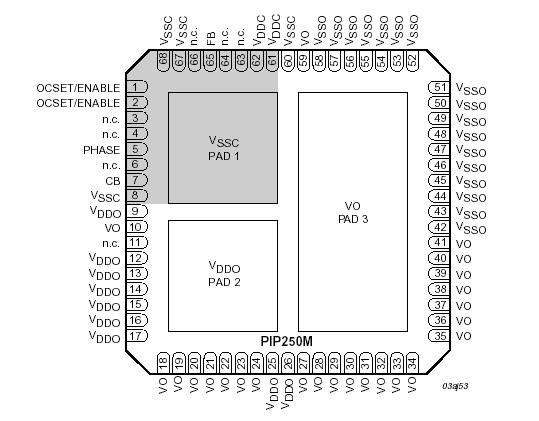

Connection Diagram


Specifications

Symbol Parameter Conditions Min Max Unit
VDDC control circuit supply voltage   -0.3 +7 V
VDDO output stage supply voltage   -0.3 +7 V
VPHASE input voltage on PHASE   -0.3 +7 V
VOCSET input voltage on OCSET   -0.3 +7 V
VFB input voltage on FB   -0.3 +7 V
VO output voltage   -0.3 +VDDO+0.3 V
VCB bootstrap voltage   -0.3 +15 V
IO(AV) average output current Tpcb110 °C; Figure 6 - 15 A
IORM repetitive peak output current tp 10 ms; duty cycle0.075 - 200 A
Ptot total power dissipation Tpcb = 25 °C - 20 W
Tpcb = 90 °C - 7 W
Tj junction temperature   -40 +125 °C
Tstg storage temperature   -55 +150 °C
Vesd electrostatic discharge voltage human body model; C = 100 pF;
R = 1500 W		 - 2 kV
machine model; C = 200 pF;
R = 10 W; L = 0.75 mH		 - 200 V



Description

The PIP250M is a fully integrated synchronous buck converter intended for use as a point-of-load regulator. PIP250M contains two N-channel power MOSFETs, a Schottky diode and a voltage mode, pulse width modulated (PWM) controller. The controller features include overcurrent and overvoltage protection and undervoltage lockout functions. By combining the power components and the controller into a single component, stray inductances are virtually eliminated, resulting in lower switching losses and a compact, efficient design with minimal external component count.
