Features:

` Guaranteed 300mA output
` High output initial voltage accuracy: ±1%
` Ultra low output noise: 138VRMS
` Low ground current: 105A
` Very low dropout: 160mV @300mA
` Zero shutdown supply current
` TTL-logic-controlled enable input
` Thermal and current limit protections
` Low ESR capacitor compatibility to achieve
` Ultra low droop load transient response
` Ultra fast line transient response
` Low profile 5-lead SOT25 and 3-lead SOT23 package
` Fixed options 1.5V, 1.8V, 2.5V, 2.8V, 3.0V and 3.3V


Application

· Cellular and cordless phones
· Wireless LAN cards
· Palmtop computers
· Personal communication equipment
· Pen drives
· Bluetooth devices


Pinout

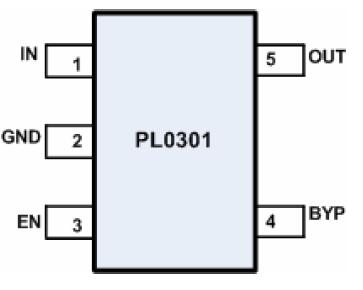

Connection Diagram


Specifications

Symbol Parameter Value Unit
VIN DC Supply Voltage at Pin 1 -0.3 to +6.0 V
VEN Enable Input Voltage at Pin 2 and Pin 3 -0.3 to +6.0 V
PBDB Continuous Power Dissipation Internally limited W
TSTG Storage Temperature Range -65 to +150 °C
RJA Thermal Resistance, Junction-To-Air 235 °C/W
TJ,MAX Operating Junction Temperature -40 to +125 °C
TBLB Lead Temperature (Soldering, 5sec) 260 °C
ESD ESD Capability, HBM model 2 kV



Description

The PL0301 is a CMOS low dropout linear regulator with ultra-low-noise output, very low dropout voltage and very low ground current.

The PL0301 operates from a 2.5V to 5.5V input voltage range and delivers up to 300mA, with low dropout of 160 mV at 300mA. The other features of PL0301 include short-circuit protection and thermal-shutdown protection.

It is designed especially for battery-powered portable devices. Its low noise feature makes it ideal for noise-sensitive personal communication applications. Other key application areas for PL0301 also include palmtop computers, PCMCIA cards and WLAN cards.

The PL0301 is available in small 5-lead SOT25 package and 3-lead SOT23 with fixed output voltage versions.
