Purchase PLL1700, In-stock PLL1700 From SeekIC.
MFG:BB D/C:04+
Part Number: PLL1700
MFG: BB
D/C: 04+
Description: The PLL1700 is a low cost, multi-clock generator Phase Lock Loop (PLL). The PLL1700 can generate four ...
- Table of contents:
PLL1700
-
Suppliers
DataSheet
General Description
PLL1700 General Description
The PLL1700 is a low cost, multi-clock generator Phase Lock Loop (PLL). The PLL1700 can generate four systems clocks from a 27MHz reference input frequency.
The device gives customers both cost and space savings by eliminating external components and enables customers to achive the very low jitter performance needed for high performance audio digital-to-analog converters (DAC) and/or analog-to-digital converters (ADC). The PLL1700 is ideal for MPEG-2 applications which use a 27MHz master clock such as DVD players, DVD add-on cards for multimedia PCs, digital HDTV systems, and set-top boxes.
PLL1700 Maximum Ratings
Supply Voltage (+VDD, +VDDP, +VDDB) .............................................. +6.5V
Supply Voltage Differences (+VDD, +VDDP) ....................................... ±0.1V
GND Voltage Differences: GND, GNDP, GNDB ............................... ±0.1V
Digital Input Voltage ................................................. 0.3V to (VDD + 0.3V)
Digital Output Voltage ............................................ 0.3V to (VDDB + 0.3V)
Input Current (any pins except supply pins) ................................... ±10mA
Power Dissipation .......................................................................... 300mW
Operating Temperature Range ......................................... 25°C to +85°C
Storage Temperature ...................................................... 55°C to +125°C
Lead Temperature (soldering, 5s) ................................................. +260°C
Package Temperature (IR reflow, 10s) .......................................... +235°C
Supply Voltage Differences (+VDD, +VDDP) ....................................... ±0.1V
GND Voltage Differences: GND, GNDP, GNDB ............................... ±0.1V
Digital Input Voltage ................................................. 0.3V to (VDD + 0.3V)
Digital Output Voltage ............................................ 0.3V to (VDDB + 0.3V)
Input Current (any pins except supply pins) ................................... ±10mA
Power Dissipation .......................................................................... 300mW
Operating Temperature Range ......................................... 25°C to +85°C
Storage Temperature ...................................................... 55°C to +125°C
Lead Temperature (soldering, 5s) ................................................. +260°C
Package Temperature (IR reflow, 10s) .......................................... +235°C
PLL1700 Features
·27MHZ MASTER CLOCK INPUT
·GENERATED AUDIO SYSTEM CLOCK: SCKO1: 33.8688MHz (Fixed) SCKO2: 256fS SCKO3: 384fS SCKO4: 768fS
·ZERO PPM ERROR OUTPUT CLOCKS
·LOW CLOCK JITTER: 150ps at SCKO3
·MULTIPLE SAMPLING FREQUENCIES: fS = 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz, 96kHz
·+3.3V CMOS LOGIC INTERFACE
·DUAL POWER SUPPLIES: +5V and +3.3V
·SMALL PACKAGE: 20-Lead SSOP
·GENERATED AUDIO SYSTEM CLOCK: SCKO1: 33.8688MHz (Fixed) SCKO2: 256fS SCKO3: 384fS SCKO4: 768fS
·ZERO PPM ERROR OUTPUT CLOCKS
·LOW CLOCK JITTER: 150ps at SCKO3
·MULTIPLE SAMPLING FREQUENCIES: fS = 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz, 96kHz
·+3.3V CMOS LOGIC INTERFACE
·DUAL POWER SUPPLIES: +5V and +3.3V
·SMALL PACKAGE: 20-Lead SSOP
PLL1700 Connection Diagram
PLL1700
PDF/DataSheet Download
- Datasheet: PLL1700
- File Size: 140511 KB
- Manufacturer: BURR-BROWN [Burr-Brown Corporation]
- Click here to Download
- ·PLL/LTC1437A
- Linear
- High Efficiency Low Noise Synchronous Step-Down Switching Regulators
- 531442 KB
- ·PLL0210A
- PHASE LOCKED LOOP
- 77282 KB
- ·PLL0305A
- Serial-Input Frequency Synthesizer
- 146510 KB
- ·PLL0930A
- ETC [ETC]
- PHASE LOCKED LOOP
- 75998 KB
- ·PLL1000A
- ETC [ETC]
- PHASE LOCKED LOOP
- 82122 KB
- ·PLL102-108
- PhaseLink Corporation
- Programmable DDR Zero Delay Clock Driver
- 168740 KB
- ·PLL102-108XC
- PhaseLink Corporation
- Programmable DDR Zero Delay Clock Driver
- 168740 KB
- ·PLL102-108XI
- PhaseLink Corporation
- Programmable DDR Zero Delay Clock Driver
- 168740 KB
PLL1700 Relative Products
PLL-16-Y2Y-5
LABEL LSR POLY YEL 1.88 X .38"
PLL-16-Y2-5
LABEL LSR POLY YEL 1.88 X .38"
PLL-16-Y2-2.5
LABEL LSR POLY WHT 1.88 X .38"
PLL-15-Y2-5
LABEL LSR POLY WHT 1.88 X .25"
PLL-14-Y2-5
LABEL LSR POLY WHT 1.5X.25"

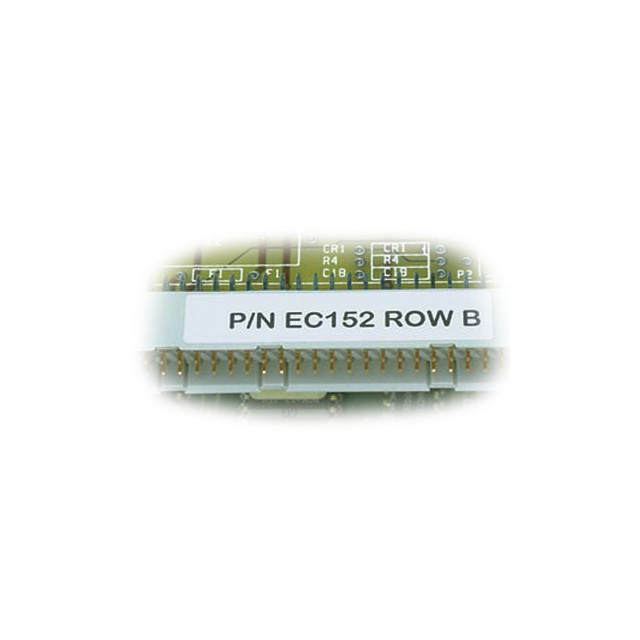

PLL-14-Y2-10
