General Description
PLS173 General Description
The PLS173 is a two-level logic element consisting of 42 AND gates and 10 OR gates with fusible link connections for programming I/O polarity and direction.
All AND gates are linked to 12 inputs (I) and 10 bidirectional I/O lines (B). These yield variable I/O gate configurations via 10 direction control gates (D), ranging from 22 inputs to 10 outputs.
On-chip T/C buffers couple either True (I, B) or Complement (I, B) input polarities to all AND gates, whose outputs can be optionally linked to all OR gates. Their output polarity, in turn, is individually programmable through a set of EX-OR gates for implementing AND/OR or AND/NOR logic functions.
The PLS173 is field programmable, enabling the user to quickly generate custom patterns using standard programming equipment.
Order codes for this device are listed below.
PLS173 Maximum Ratings
|
SYMBOL |
PARAMETER |
RATING |
UNIT | |
|
MIN. |
MAX. | |||
|
VCC |
Supply voltage |
+7 |
VDC | |
|
VIN |
Input voltage |
+5.5 |
VDC | |
|
VOUT |
Output voltage |
+5.5 |
VDC | |
|
IIN |
Input currents |
-30 |
+30 |
nA |
|
IOUT |
Output currents |
+100 |
mA | |
|
TAMB |
Operating free-air temperature range |
0 |
+75 |
|
|
TSTG |
Storage temperature range |
-65 |
+150 |
|
NOTES:
1. Stresses above those listed may cause malfunction or permanent damage to the device. This is a stress rating only. Functional operation at these or any other condition above those indicated in the operational and programming specification of the device is not implied.
Note
1. Up to 0.3 mm from ceramic.
PLS173 Features
• I/O propagation delay: 30ns (max.)
• 12 inputs
• 42 AND gates
• 10 OR gates
• 10 bidirectional I/O lines
• Active-High or -Low outputs
• 42 product terms: 32 logic terms 10 control terms
• Ni-Cr programmable links
• Input loading: 100mA (max.)
• Power dissipation: 750mW (typ.)
• 3-State outputs
• TTL compatible
• 12 inputs
• 42 AND gates
• 10 OR gates
• 10 bidirectional I/O lines
• Active-High or -Low outputs
• 42 product terms: 32 logic terms 10 control terms
• Ni-Cr programmable links
• Input loading: 100mA (max.)
• Power dissipation: 750mW (typ.)
• 3-State outputs
• TTL compatible
PLS173 Typical Application
• Random logic
• Code converters
• Fault detectors
• Function generators
• Address mapping
• Multiplexing
• Code converters
• Fault detectors
• Function generators
• Address mapping
• Multiplexing

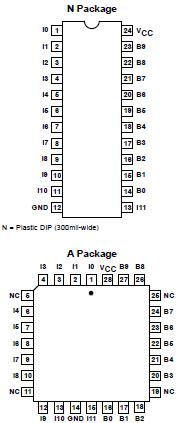

PLS173 Connection Diagram
PLS173
PDF/DataSheet Download
- Datasheet: PLS173
- File Size: 75262 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
- ·PLS1
- Analog IC
- 84159 KB
- ·PLS100
- PHILIPS [Philips Semiconductors]
- Programmable logic arrays 16 】 48 】 8
- 130827 KB
- ·PLS100/101
- PLD Logic Array (16 X 48 X 8) TS
- 130780 KB
- ·PLS100A
- Fuse-Programmable PLD
- 353401 KB
- ·PLS100N
- Fuse-Programmable PLD
- 353401 KB
- ·PLS100N-B
- Fuse-Programmable PLD
- 353401 KB
- ·PLS101
- PHILIPS [Philips Semiconductors]
- Programmable logic arrays 16 】 48 】 8
- 130827 KB
- ·PLS101A
- PHILIPS [Philips Semiconductors]
- Programmable logic arrays 16 】 48 】 8
- 130827 KB
PLS173 Relative Products
PLS168
The PLS168 is a bipolar, programmable state machine of the Mealy type. PLS168 contains logic AND-OR gate arrays with user programmable connections which control the inputs of on-chip state and output registers. PLS168 consist respectively of 10 Qp, and 4 Of ...
PLS167-33
The PLS167-33 is one member of the PLS167 series.The PLS167 is field-programmable replacements for sequential logic. The devices function as Mealy state machines with a registered output. The PLS utilizes the familiar AND/OR PLA logic structure to implement ...
PLS159A
The PLS159A is a 3-State output, registered logic element combining AND/OR gate arrays with clocked J-K flip-flops. These J-K flip-flops are dynamically convertible to D-type via a "fold-back" inverting buffer and control gate FC. PLS159A features 8 register...
PLS157
The PLS157 is a 3-state output, registered logic element combining AND/OR gate arrays with clocked J-K flip-flops. These J-K flip-flops are dynamically convertible to D-type via a "fold-back" inverting buffer and control gate Fc. PLS157 features 4 registered...
PLS155
The PLS155 is a 3-state output, registered logic element combining AND/OR gate arrays with clocked J-K flip-flops. These J-K flip-flops are dynamically convertible to D-type via a "fold-back" inverting buffer and control gate Fc. PLS155 features 4 registered...
PLS153A
The PLS153 and PLS153A are two-level logic elements, consisting of 42 AND gates and 10 OR gates with fusible link connections for programming I/O polarity and direction.All AND gates of PLS153 and PLS153A are linked to 8 inputs (I) and 10 bidirectional I/O l...
