General Description
PN531 Maximum Ratings
| SYMBOL | PARAMETER | MIN | MAX | UNIT |
| AVDD DVDD PVDD SVDD TVDD |
Supply Voltages | -0.5 | 4.0 | V |
| VBUS | USB Supply Voltage | -0.5 | 5.5 | V |
PN531 Features
• 80C51 microcontroller core with 32 kbyte ROM and 1 kbyte RAM
• Highly integrated analog circuitry for transmission and reception
• Output drivers to connect an antenna with minimum number of external components
• Integrated RF Level detector
• Integrated mode detector
• Hardware and embedded Firmware support for
• ISO 14443A reader/writer mode
• MIFARE ® Classic encryption and MIFARE ® higher baudrate communication up
• Contactless communication according to the FeliCa FeliCaTM TM scheme at 212 kbit/s and
• NFC standard ECMA 340 and ISO 18092: NFC IP-1 interface and protocol
• Host protocol on following interfaces
• USB 2.0 full speed compliant device
• SPI
• I2C
• High speed serial UART
• Optional interrupt line to the host
• Hard reset with low power function
• Flexible Power down mode or power reduction mode per software
• Internal oscillator to connect a 27.12 MHz quartz
• Internal oscillator to connect a 4 MHz quartz for the USB interface
• 2.5 - 3.6 V power supply
• USB bus powered (In USB mode)
• Specific IO ports and interrupt sources for external devices control
• Highly integrated analog circuitry for transmission and reception
• Output drivers to connect an antenna with minimum number of external components
• Integrated RF Level detector
• Integrated mode detector
• Hardware and embedded Firmware support for
• ISO 14443A reader/writer mode
• MIFARE ® Classic encryption and MIFARE ® higher baudrate communication up
• Contactless communication according to the FeliCa FeliCaTM TM scheme at 212 kbit/s and
• NFC standard ECMA 340 and ISO 18092: NFC IP-1 interface and protocol
• Host protocol on following interfaces
• USB 2.0 full speed compliant device
• SPI
• I2C
• High speed serial UART
• Optional interrupt line to the host
• Hard reset with low power function
• Flexible Power down mode or power reduction mode per software
• Internal oscillator to connect a 27.12 MHz quartz
• Internal oscillator to connect a 4 MHz quartz for the USB interface
• 2.5 - 3.6 V power supply
• USB bus powered (In USB mode)
• Specific IO ports and interrupt sources for external devices control
PN531 Typical Application
The PN531 is tailored to fulfil the requirements of various applications using contactless communication based on the ECMA340 (NFC IP-1) Interface and protocol standard, the ISO14443A reader and FeliCa reader protocol. NFC IP-1 is also standardised in ISO/IEC 18092.
Compatible to current RFID infrastructure the NFC technology offers a new direct communication link between two NFC enhanced devices. This peer-to-peer communication enables a direct data exchange between devices.
The integrated microcontroller and embedded firmware of the PN 531 means a fast and easy integration in a contactless system. The high-level abstraction commands and the complete handling of RF communication protocols free the host CPU of all real time related constraints.
NFC technology is designed to meet requirements for consumer markets, as well as handheld and PC markets.
Typical devices to integrate the PN531 are
• Mobile phones
• PDAs
• PCs
• Intelligent remote controls
• PC peripherals e.g. printers and mice
• Consumer electronic devices like digital cameras

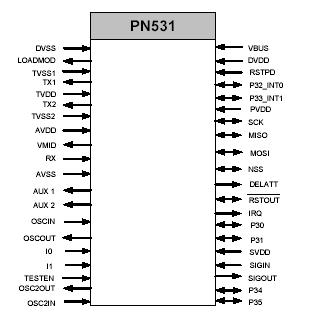

PN531 Connection Diagram
