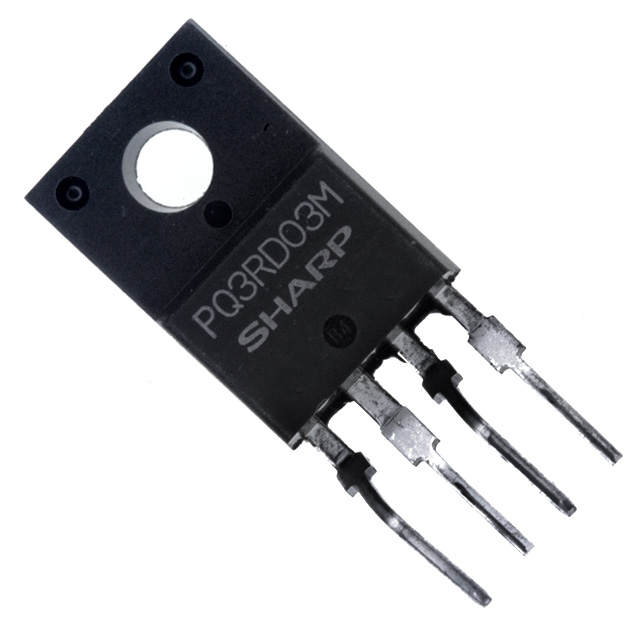

PQ3RD083

Series: -
Regulator Topology: Positive Fixed
Number of Regulators: 1
Current - Limit (Min): -
Mounting Type: Through Hole
Voltage - Dropout (Typical): -
Voltage - Output: 3.3V
Packaging: Tube
Voltage - Input: Up to 20V
Operating Temperature: -20°C ~ 80°C
Current - Output: 800mA
Manufacturer: Sharp Microelectronics
Package / Case: TO-220-4
Supplier Device Package: TO-220-4


Features:

·Low power-loss (Dropout voltage: MAX. 0.5V at I_o=0.5A)
·0.8A output type
·Compact resin package (equivalent to TO-220)
·Available 3.3V/5V/6.3V/9V/12V output type
·Output voltage precision: ±3.0%
·Built-in ON/OFF control function
·Built-in Overcurrent, overheat protection functions, ASO protection circuit
·Lead forming type is also available.


Application

Power supplies for various electronic equipment such as AV, OA equipment


Specifications

Parameter	Symbol	Rating	Unit
*1 Input voltage	VIN	20	V
*1 ON/OFF control terminal voltage	VC	20	V
Output current	IO	0.8	A
*2 Power dissipation	PD1	1.25	W
	PD2	10	W
*3 Junction temperature	Tj	150	°C
Operating temperature	Topr	-20 to + 80	°C
Storage temperature	Tstg	-40 to +150	°C
Soldering temperature	Tsol	260 (For 10s)	°C

Parameters:

Technical/Catalog Information	PQ3RD083
Vendor	Sharp Microelectronics
Category	Integrated Circuits (ICs)
Regulator Type	Single Output
Package / Case	TO-220
Packaging	Tube
Regulator Topology	Positive Fixed
Current - Output	800mA
Voltage - Output	3.3V
Operating Temperature	-20°C ~ 80°C
Voltage - Input	4 ~ 10 V
Number of Regulators	1
Current - Limit (Min)	800mA
Current Short Circuit (Isc)	-
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PQ3RD083 PQ3RD083 425 1731 5 ND 42517315ND 425-1731-5
