Purchase PQ3RF43, In-stock PQ3RF43 From SeekIC.
MFG:SHARP D/C:05+
- Table of contents:
PQ3RF43
-
Suppliers
DataSheet
General Description
PQ3RF43 Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
| *1 Input voltage |
VIN |
10 |
V |
| *1 ON/OFF control terminal voltage |
VADJ |
10 |
V |
| Output current |
IO |
4.6 |
A |
| Power dissipation (No heat sink) |
PD1 |
1.8 |
W |
| Power dissipation (With infinite heat sink) |
PD2 |
18 |
W |
| *2 Junction temperature |
Tj |
150 |
|
| Operating temperature |
Topr |
-20 to +80 |
|
| Storage temperature |
Tstg |
-40 to +150 |
|
| 8 Soldering temperature |
Tsol |
260 (For 10s) |
*2 Overheat protection may operate at 125=<Tj=<150°C.
PQ3RF43 Features
· Low power-loss
(Dropout voltage : MAX.0.5V at Io = 4.0A)
(Dropout voltage : MAX.1.0V at Io = 4.6A)
· Compact resin full-mold package (TO-220 package)
· 3.3V/4.6A output type
· High-precision output voltage type Output voltage precision : ±2.5%
· Built-in ON/OFF control function
· Built-in overcurrent protection, overheat protection function
(Dropout voltage : MAX.0.5V at Io = 4.0A)
(Dropout voltage : MAX.1.0V at Io = 4.6A)
· Compact resin full-mold package (TO-220 package)
· 3.3V/4.6A output type
· High-precision output voltage type Output voltage precision : ±2.5%
· Built-in ON/OFF control function
· Built-in overcurrent protection, overheat protection function
PQ3RF43 Typical Application
· Power supplies for various electronic equipment such as personal computers
PQ3RF43
PDF/DataSheet Download
- Datasheet: PQ3RF43
- File Size: 31091 KB
- Manufacturer: SHARP [Sharp Electrionic Components]
- Click here to Download
- ·PQ30
- 280704 KB
- ·PQ30RF11
- 297028 KB
- ·PQ30RV1
- SHARP [Sharp Electrionic Components]
- Variable Output Low Power-Loss Voltage Regulators
- 65530 KB
- ·PQ30RV1_01
- SHARP [Sharp Electrionic Components]
- Low Power-Loss Voltage Regulators
- 95777 KB
- ·PQ30RV11
- SHARP [Sharp Electrionic Components]
- Variable Output Low Power-Loss Voltage Regulators
- 65530 KB
- ·PQ30RV1B
- Positive Adjustable Voltage Regulator 所属类别：电源类/线性电压调节器(LinearVoltageRegulatorsICs)
- 280704 KB
- ·PQ30RV2
- SHARP [Sharp Electrionic Components]
- Variable Output Low Power-Loss Voltage Regulators
- 65530 KB
- ·PQ30RV21
- SHARP [Sharp Electrionic Components]
- Variable Output Low Power-Loss Voltage Regulators
- 65530 KB
PQ3RF43 Relative Products

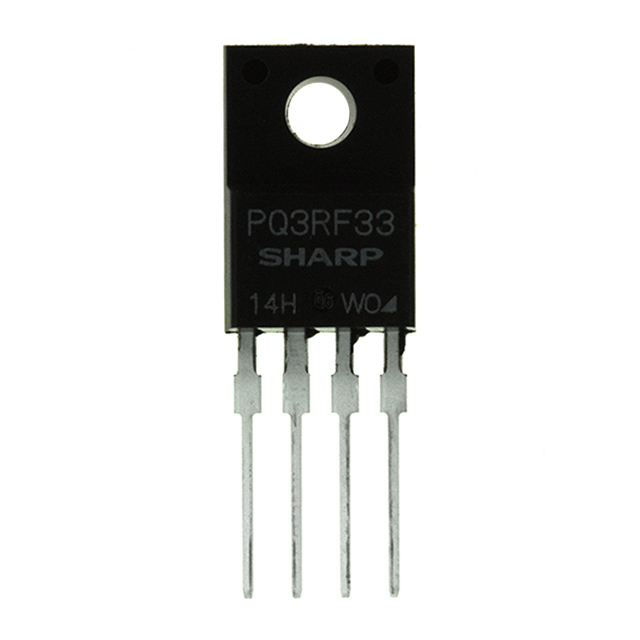

PQ3RF33J000H
