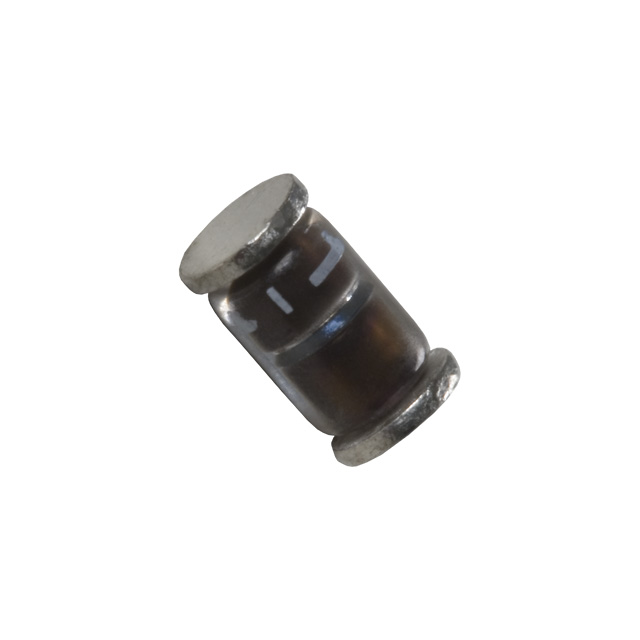

PRLL5817115 Product Image

PRL Series Datasheet download

Five Points

Part Number: PRLL5817115

Category: Other

MFG: Other





Description: The PRLL5817115 is designed as one kind of schottky barrier diode device that is fabricated in planar technology, and enc...


Urgent Purchase

PRLL5817115 General Description


The PRLL5817115 is designed as one kind of schottky barrier diode device that is fabricated in planar technology, and encapsulated in SOD87 hermetically sealed glass SMD packages incorporating Implotec technology. And this device can be used in (1)Low power, switched-mode power supplies; (2)Rectifying; (3)Polarity protection applications.

Features of the PRLL5817115 are:(1)Low switching losses; (2)Fast recovery time; (3)Guard ring protected; (4)Hermetically sealed glass SMD package.

The absolute maximum ratings of the PRLL5817115 can be summarized as:(1)continuous reverse voltage: 20 V;(2)non-repetitive peak reverse voltage: 24 V;(3)repetitive peak reverse voltage: 20 V;(4)crest working reverse voltage: 20 V;(5)junction temperature: 125 °C;(6)operating ambient temperature: -65 to +175 °C;(7)storage temperature: -65 to +200 °C. If you want to know more information about the PRLL5817115, please download the datasheet in www.seekic.com or www.chinaicmart.com .

PRLL5817115 Connection Diagram

PRLL5817115  Connection Diagram
