Purchase PT6999_1125663, In-stock PT6999_1125663 From SeekIC.
Part Number: PT6999_1125663
Description: PT6999 is an output expander providing 12 bits of serial to parallel output. Pin Assignments and appli...
- Table of contents:
PT6999_1125663
-
Suppliers
DataSheet
General Description
PT6999_1125663 General Description
PT6999 is an output expander providing 12 bits of serial to parallel output. Pin Assignments and application circuit are optimized for easy PCB Layout and cost saving benefits.
PT6999_1125663 Features
• Low Power Consumption
• N-Channel Open Drain Output: (Qx)
• High Output Withstanding Voltage (12V): (Qx)
• Serial Cascade
• Operating Voltage Range: 3.0 to 5.5 V
• Low Power Dissipation
• High Driving Capability
• N-Channel Open Drain Output: (Qx)
• High Output Withstanding Voltage (12V): (Qx)
• Serial Cascade
• Operating Voltage Range: 3.0 to 5.5 V
• Low Power Dissipation
• High Driving Capability
PT6999_1125663 Typical Application
• Radio Cassette Players
• Telephones
• Compact Audio System
• Car Stereo
• Telephones
• Compact Audio System
• Car Stereo

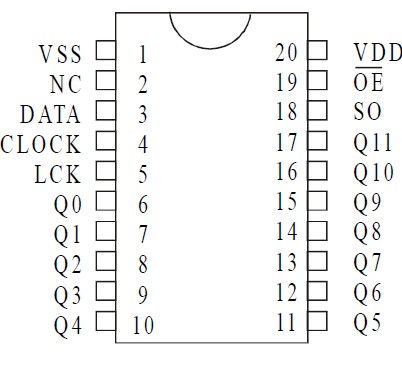

PT6999_1125663 Connection Diagram
PT6
