PXB4330

Features: • ALP Co-processor for Address Reduction to search for a Port Number PN, VPI and VCI the corresponding LocalConnection Identifier LCI • Delivers search result during one cell cycle for Bit rates up to 686 MBit/s• CAME supports up to 8192 search entries• Master or ...

product image

PXB4330 Picture
See larger image
SeekIC No. : 004467442 Detail

PXB4330: Features: • ALP Co-processor for Address Reduction to search for a Port Number PN, VPI and VCI the corresponding LocalConnection Identifier LCI • Delivers search result during one cell c...

PXB4330 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PXB4330
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• ALP Co-processor for Address Reduction to search for a Port Number PN, VPI and VCI the corresponding Local
Connection Identifier LCI
• Delivers search result during one cell cycle for Bit rates up to 686 MBit/s
• CAME supports up to 8192 search entries
• Master or Slave mode is selectable to cascade 2 CAME chips to support up to 16384 search entries
• 16-bit or 32-Bit Data Interface is selectable; ALP uses the 16-Bit interface
• Microprocessor Interface is not necessary as CAME is configurated via Address and Data Bus
• Three search modes are supported:- Search for LCI and the corresponding PN, VPI and VCI- Search for PN, VPI and VCI the corresponding LCI- Search for PN and VPI the corresponding first valid LCI for F4 OAM cells
• Status Report provides:- Information on search result: single match, mismatch or multimatch- Information on whether the connection is valid or invalid for a given LCI, PN, VPI and VCI- Information on whether the VP is terminated or not for a given LCI, PN, VPI and VCI
• Parity error indication for Data Bus and CAME cascade error indication
• Boundary Scan support according to JTAG
• Technology:- TQFP-144 package- 3.3 V Power Supply- typical Power dissipation 0.3 W- Temperature range from 0 to +70


Pinout

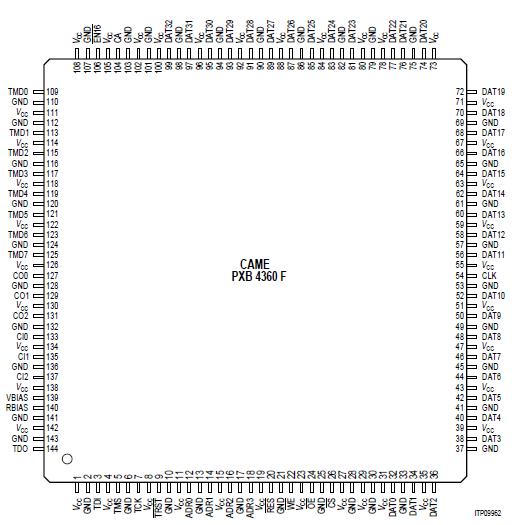

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
Supply Voltage VCC -0.5 to 4.6
V
Input Voltage VIN -0.5 toVCC+0.5
V
Output Voltage VOUT
V
Power Dissipation PV <0.3
W
Storage Temperature TS -65 to 150
NOTE:Strsses above those listed here may cause permanent damage to the device.Exposure to absolute maximun rating conditions for extended for extended periods may affect device may affect device reliatility
