Product Details

Description



Features:

   - 10 output, low skew signal buffer
   - Guaranteed low skew:
`  0.7ns output skew (same bank)
`  0.9ns output skew (different bank)
`  1ns part-to-part skew
   - 25 on-chip resistors available for low noise
   - Input hysteresis for better noise margin
   - Monitor output
   - Undershoot clamp diodes on all inputs
   - Std. and A speed grades
   - Available in QSOP and SOIC packages



Pinout

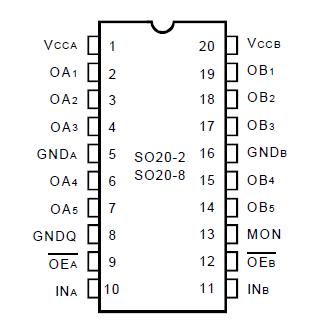

  Connection Diagram


Specifications

SYMBOL Description
Max.
UNITS
VTERM(2) Supply Voltage to Ground
0.5 to +7
V
  DC Output Voltage VOUT
0.5 to +7
V
VTERM(3) DC Input Voltage VIN
0.5 to +7
V
VAC AC Input Voltage (pulse width 20ns)
-3
V
IOUT DC Input Diode Current VIN < 0
-20
mA
  DC Output Current Max. Sink Current/Pin
120
mA
TSTG Storage Temperature
65 to +150
TJ Junction Temperature
150
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. Vcc Terminals.
3. All terminals except Vcc.



Description

The QS52805AT clock buffer/driver circuits can be used for clock buffering schemes where low skew is a key parameter. This device offers two banks of five non-inverting outputs. This device provides low propagation delay buffering with on-chip skew of 0.7ns for same-transition, same-bank signals.

The QS52805AT has on-chip series termination resistors for lower noise clock signals. The QS52805AT series resistor version is recommended for driving unterminated lines with capacitive loading and other noise sensitive clock distribution circuits. These clock buffer products are designed for use in high-performance workstations and in embedded and personal computing systems. Several devices can be used in parallel or scattered throughout a system for guaranteed low skew, system-wide clock distribution networks.

The QS52805AT is characterized for operation at -40°C to +85°C.
