Product Details

Description



Features:

• Input Voltage ......................................................... Max. 36V
• Supply Current ......................................................Typ. 9A
• Standby Current ....................................................Typ. 0.1A
• Temperature-Drift Coefficient of Output Voltage ...Typ. ±100ppm/°C
• Output Current ......................................................Min. 150mA (VIN=VOUT+3.0V; R1514x050B)
• Line Regulation .....................................................Typ. 0.05%/V
• Output Voltage Accuracy.......................................±2%
• Packages ..............................................................SOT-89-5, HSOP-6J
• Output Voltage Range...........................................Stepwise setting with a step of 0.1V in the range of 2.0V
                                                                                 to 12.0V is possible (refer to Selection Guide).
• Built-in Peak Current Limit Circuit
• Built-in Short Current Limit Circuit
• Built-in Thermal Shutdown Circuit
• Operating Temperature ......................................... −40°C to 105°C


Application

• Power source for home appliances such as refrigerators, rice cookers, electoric water warmers, etc.
• Power source for car audio equipment, car navigation system, ETC system, etc.
• Power source for notebook PCs, digital TVs, cordless phones, and private LAN system, etc.
• Power source for office equipment machines such as copiers, printers, facsimiles, scanners, projectors, etc.

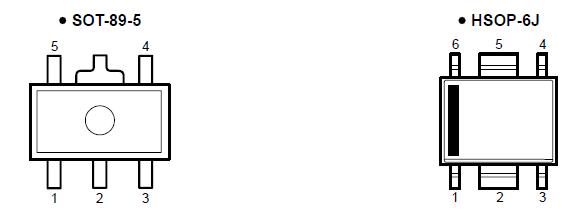

Pinout

Connection Diagram


Specifications

Symbol
Item
Rating
Unit
VIN
 Input Voltage
−0.3 to 50
V
VIN
 Peak Input Voltage *1
60
V
VCE
 Input Voltage (CE Pin)
-0.3∼VIN+0.3 50
V
VOUT
 Output Voltage
-0.3∼VIN+0.3 50
V
IOUT
 Output Current
250
mA
PD
 Power Dissipation (SOT-89-5) *2
900
mW
Power Dissipation (HSOP-6J) *2
1700
Topt
 Operating Temperature Range
-40∼+105
°C
Tstg
 Storage Temperature Range
-55∼+125
°C


*1) Duration time=200ms
*2) For Power Dissipation, please refer to PACKAGE INFORMATION to be described.




Description

The R1514x series are CMOS-based positive voltage regulator (VR) ICs featuring 150mA output current. The R1514xxxxB has features of high input voltage and ultra-low supply current. A peak current limit circuit, a short current limit circuit, and a thermal shutdown circuit are built in the R1514x series.

The operating temperature is −40°C to 105°C and the maximum input voltage is 36V, the R1514x series are very suitable for power source of car accessories.

The regulator output voltage is fixed in the R1514xxxxB and can be selected with a step of 0.1V in the range of 2.0V to 12.0V. Output voltage accuracy is ±2%.

The packages for R1514x is the SOT-89-5 for space saving and the HSOP-6J for higher power applications.
