RC5060

Features: ·Implements ACPI control with PWROK, SLP_S3# and SLP_S5#·Switch and linear regulator controller for 3.3V Dual (PCI)·Linear regulator controller and linear regulator for 2.5V Dual (RAMBUS)·Two switch controller for 5V Dual (USB)·Switch controller and linear regulator for 3.3V SDRAM·Provid...

product image

RC5060 Picture
See larger image
SeekIC No. : 004472623 Detail

RC5060: Features: ·Implements ACPI control with PWROK, SLP_S3# and SLP_S5#·Switch and linear regulator controller for 3.3V Dual (PCI)·Linear regulator controller and linear regulator for 2.5V Dual (RAMBUS)·...

RC5060 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RC5060
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Implements ACPI control with PWROK, SLP_S3# and SLP_S5#
·Switch and linear regulator controller for 3.3V Dual (PCI)
·Linear regulator controller and linear regulator for 2.5V Dual (RAMBUS)
·Two switch controller for 5V Dual (USB)
·Switch controller and linear regulator for 3.3V SDRAM
·Provides SDRAM and RAMBUS power simultaneously
·Adaptive Break-before-Make
·Integrated Power Good
·Drives all N-Channel MOSFETs plus NPN
·Latched overcurrent protection for outputs
·Power-up softstarts for the linear regulators
·UVLO guarantees correct operation for all conditions
·20 pin SOIC package


Application

·Camino Platform ACPI Controller
·Whitney Platform ACPI Controller
·Tehama Platform ACPI Controller


Pinout

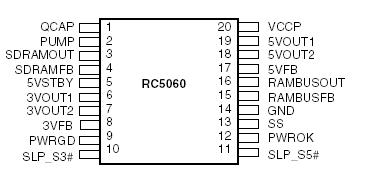

Connection Diagram


Specifications

VCCP 15V
All Other Pins 13.5V
Junction Temperature, TJ 150
Storage Temperature -65 to 150
Lead Soldering Temperature, 10 seconds 300
Thermal Resistance Junction to AmbientJA 85/W
Thermal Resistance Junction-to-case,JC 24/W



Description

The RC5060 is an ACPI Switch Controller for the Camino, Whitney and Tehama Platforms. It is controlled by PWROK, SLP_S3# and SLP_S5#, and provides 3.3V Dual for PCI, 3.3V for SDRAM, 2.5V Dual for RAMBUS, and 5V Dual voltages. An on-board precision low TC reference achieves tight tolerance voltage regulation without expensive external components. The RC5060 also offers integrated Power Good and Current Limiting that protects each output, and softstart for the linear regulators. The RC5060 is available in a 20 pin SOIC.
