RC5532

Features: • Small signal bandwidth 10 MHz• Output drive capability 600W, 10 VRMS• Input noise voltage 5 nV/Hz • DC voltage gain 50,000• AC voltage gain 2200 at 10 KHz• Power bandwidth 140 KHz• Slew rate 8 V/S• Large supply voltage range ±3V t...

product image

RC5532 Picture
See larger image
SeekIC No. : 004472626 Detail

RC5532: Features: • Small signal bandwidth 10 MHz• Output drive capability 600W, 10 VRMS• Input noise voltage 5 nV/Hz • DC voltage gain 50,000• AC voltage gain 2200 at 10 ...

RC5532 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RC5532
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Small signal bandwidth 10 MHz
• Output drive capability 600W, 10 VRMS
• Input noise voltage 5 nV/Hz
• DC voltage gain 50,000
• AC voltage gain 2200 at 10 KHz
• Power bandwidth 140 KHz
• Slew rate 8 V/S
• Large supply voltage range ±3V to ±20V


Pinout

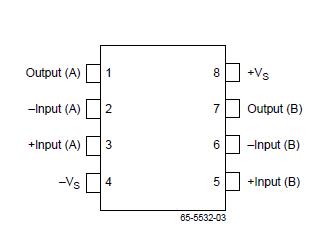

Connection Diagram


Specifications

Parameter Min. Typ. Max. Units
Supply Voltage       ±22 V
Input Voltage       ±VS V
Differential Input Voltage       0.5 V
PDTA < 50 PDIP     468 mW
CerDIP 833
SOIC 658
Junction Temperature PDIP     125
CerDIP, TO-99 175
Storage Temperature -65   150
Operating Temperature RM5532/A -55   125
RC5532/A 0 70
Lead Soldering Temperature (10 sec)     300
1. Functional operation under any of these conditions is NOT implied.
2. For supply voltages less than ±15V, the absolute maximum input voltage is equal to the supply voltage.
3. Short circuit to ground on one amplifier only.


Description

The RC5532 is a high performance, dual low noise operational amplifier. Compared to standard dual operational amplifiers, such as the RC747, it shows better noise performance, improved output drive capability, and considerably higher small-signal and power bandwidths.

This makes the device especially suitable for application in high quality and professional audio equipment, instrumentation, control circuits, and telephone channel amplifiers.The RC5532 op amp is internally compensated for gains equal to one.

If very low noise is of prime importance, it is recommended that the RC5532A version be used which has guaranteed noise specifications.
