Part Number: RC7352
Description: The RC7352 is a "Per Pin" Parametric Measurement Unit (PMU) that can force voltage and measure current...
- Table of contents:
RC7352
-
Suppliers
DataSheet
General Description
RC7352 General Description
The RC7352 is a "Per Pin" Parametric Measurement Unit (PMU) that can force voltage and measure current or force current and measure voltage. The RC7352 forces voltages from +15V to -5V when +VS is 20V and VS is -10V, or currents up to ±40mA. All logic inputs for the RC7352 are TTL compatible, while the open collector logic outputs are TTL/CMOS compatible.
Setting the SI/V (Select I/V) pin low puts the RC7352 in the force voltage and measure current mode. The resulting output voltage at the DUT matches the input applied to the
RC7352 Maximum Ratings
| Parameter | Min. | Max. | Units |
| Absolute Difference, +VS+|VS| | 32 | V | |
| Digital Control Inputs | |||
| SI/V, RS1, RS2, VDIS | -2 | +6 | V |
| Comparator Inputs | |||
| I/VMN, I/VMX | I/VMN +VS | VS I/VMX | V |
| I/VIN | VS I/VIN £ +VS |
V | |
RC7352 Features
• Force voltage/measure current and force current
measure voltage functions
• Forced voltage range (-5V to +15V)
• Four programmable measured current ranges:
Range A = ±20mA max
Range B = ±200mA max
Range C = ±1.0mA max
Range D = ±40mA max
• High resolution current force/measure ±0.05% = 2 bits
• Internal control circuitry for selecting ranges
• High accuracy: 12 bit linearity and 0.5% gain error
• High current range D current limit protection set
externally by the value of resistor RDIL
• Measurement output voltage can be disabled
• Forced current ranges:
Range A = ±20mA max
Range B = ±200mA max
Range C = ±1.0mA max
Range D = ±40mA max
• Measured voltage range: -5V to +15V
• High resolution voltage measurement (±0.05%) and
accuracy: (±10mV max. offset) and 0.5% gain error
• Internal current limit for ranges (A, B, & C)
RC7352 Typical Application
• ATE pin electronics measurements
• Instrumentation, meters
• Programmable voltage or current supply
• Instrumentation, meters
• Programmable voltage or current supply

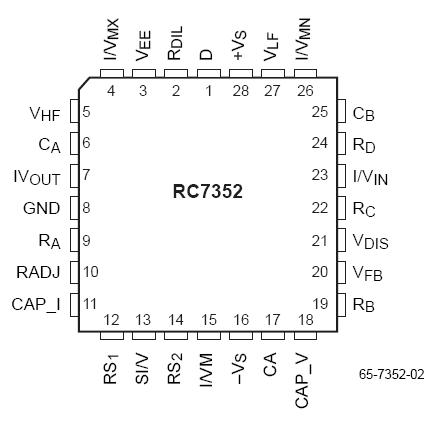

RC7352 Connection Diagram
RC7352
