Purchase REF02, In-stock REF02 From SeekIC.
MFG:ADI D/C:09
Part Number: REF02
MFG: ADI
D/C: 09
Description: The REF02 precision voltage reference provides a stable 5 V output that can be adjusted over a ±6% range with minimal e...
- Table of contents:
REF02
-
Suppliers
DataSheet
General Description
REF02 General Description
The REF02 precision voltage reference provides a stable 5 V output that can be adjusted over a ±6% range with minimal effect on temperature stability. Single-supply operation over an input voltage range of 7 V to 40 V, low current drain of 1 mA, and excellent temperature stability are achieved with an improved band gap design. Low cost, low noise, and low power make the REF02 an excellent choice whenever a stable voltage reference is required. Applications include DACs and ADCs, portable instrumentation, and digital voltmeters. The versatility of the REF02 is enhanced by its use as a monolithic temperature transducer. For new designs, refer to ADR02.
REF02 Maximum Ratings
| Parameter | Rating |
| Input Voltage | 40 V |
| Output Short-Circuit Duration | |
| to Ground or VIN | Indefinite |
| Storage Temperature | |
| J, RC, and Z Packages | 65°C to +150°C |
| P Package | 65°C to +125°C |
| Operating Temperature Range | |
| REF02A, REF02J, REF02RC | 55°C to +125°C |
| REF02CJ, REF02CZ | 0°C to 70°C |
| REF02CP, REF02CS, REF02E, | |
| REF02H | 40°C to +85°C |
| Lead Temperature Range (Soldering 10 sec) | 300°C |
REF02 Features
5 V output, ±0.3% max
Temperature voltage output, 1.96 mV/°C
Adjustment range, ±3% min
Excellent temperature stability, 8.5 ppm/°C max
Low noise, 15 µV p-p max
Low supply current, 1.4 mA max
Wide input voltage range, 7 V to 40 V
High load-driving capability, 10 mA
No external components
Short-circuit proof
Temperature voltage output, 1.96 mV/°C
Adjustment range, ±3% min
Excellent temperature stability, 8.5 ppm/°C max
Low noise, 15 µV p-p max
Low supply current, 1.4 mA max
Wide input voltage range, 7 V to 40 V
High load-driving capability, 10 mA
No external components
Short-circuit proof

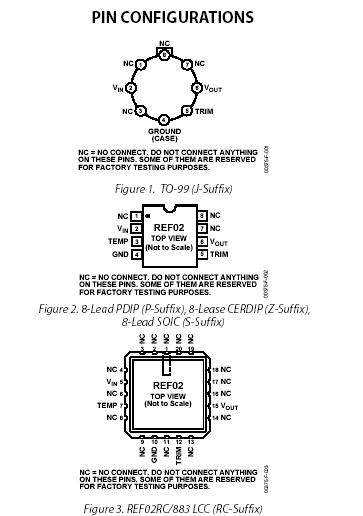

REF02 Connection Diagram
REF02
PDF/DataSheet Download
- Datasheet: REF02
- File Size: 354277 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
