RF210A

Features: • LNA/image-reject mixer for RF to IF conversion• 10 dB (RF210A) or 20 dB (RF210B) switchable gain for GSM• 8 dB (RF210A) or 16 dB (RF210B) switchable gain for DCS/PCS• 30 dB of image rejection. No post-LNA filtering required• High isolation LO input buffer&...

product image

RF210A Picture
See larger image
SeekIC No. : 004476184 Detail

RF210A: Features: • LNA/image-reject mixer for RF to IF conversion• 10 dB (RF210A) or 20 dB (RF210B) switchable gain for GSM• 8 dB (RF210A) or 16 dB (RF210B) switchable gain for DCS/PCS...

RF210A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RF210A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• LNA/image-reject mixer for RF to IF conversion
• 10 dB (RF210A) or 20 dB (RF210B) switchable gain for GSM
• 8 dB (RF210A) or 16 dB (RF210B) switchable gain for DCS/PCS
• 30 dB of image rejection. No post-LNA filtering required
• High isolation LO input buffer
• Differential IF output
• High dynamic range
• Three-cell battery operation (2.7 to 5 V)
• 20-pin Thin Shrink Small Outline Package (TSSOP)


Application

• Dual-band digital cellular mobile telephony
   (GSM900/DCS 1800 or GSM900/PCS1900)


Pinout

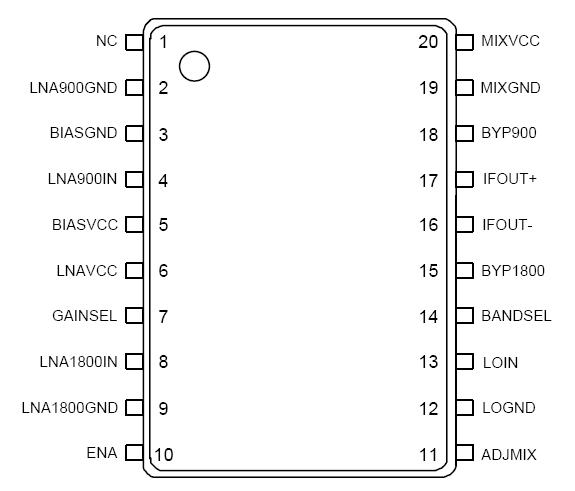

Connection Diagram


Specifications

Parameter Minimum Maximum Units
Storage Temperature 40 +125 °C
LNA Input Power   +5 dBm
Supply Voltage (VCC) 0.3 +6 V
Input Voltage Range 0.3 Vcc V



Description

The RF210A and RF210B devices are available as a dual-band front end for Global System for Mobile Communications (GSM) handset applications. Both of these highly integrated, monolithic devices RF210A are optimized for dual-band use in GSM900/DCS1800 or GSM 900/PCS1900 applications. The devices include two Low Noise Amplifiers (LNAs), two image-reject mixers, and two Local Oscillator (LO) buffer amplifiers.

The main advantage of the RF210A and RF210B is their ability to provide 30 dB of image rejection for both the GSM900 and the DCS1800 (or PCS1900) bands without requiring the use of a post-LNA image reject filter. A block diagram of the RF210(A/B) is shown in Figure 1. The device package and pin configuration are shown in Figure 2.
