Features:

• Supports EGSM
• LNA and mixer for RF to IF conversion
• 12 dB or 20 dB switchable gain step
• Minimum 35 dB of image rejection
• No external post-LNA filters required
• Common Intermediate Frequency (IF) port for all bands
• IF range from 350 MHz to 450 MHz
• High isolation LO input buffer
• Differential IF output
• High dynamic range with low current consumption
• Three-cell battery operation (2.7 to 3.6 V)
• 20-pin Exposed paddle, Thin Shrink Small Outline Package (ETSSOP)


Application

• Dual/tri-band digital cellular mobile telephony
  (EGSM900/DCS1800, or
  EGSM900/DCS1800/PCS1900)


Pinout

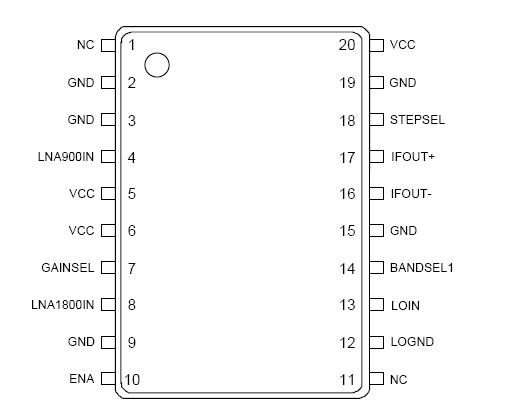

Connection Diagram


Specifications

Parameter Minimum Maximum Units
Storage Temperature 40 +125 °C
Supply Voltage (VCC) 0.3 +3.6 V
Input Voltage Range 0.3 Vcc V



Description

The RF212 device is available as a dual-band (EGSM900/DCS1800) front end or as a tri-band (EGSM900/DCS1800/PCS1900) front end for Global System for Mobile Communications (GSM) mobile telephony applications. Each device of RF212 integrates all the required front-end components after the frequency pre-select filters. These components include the Low Noise Amplifiers (LNAs), the internal image-reject filters, mixers, and a Local Oscillator (LO) amplifier.

The main advantage of the RF212 is its ability to provide a minimum of 35 dB of image rejection for each band. The block diagrams of the devices are shown in Figures 1 and 2. The device packages and pin configurations are shown in Figures 3 and 4.
