Product Details

Description

Features:

• 1.6dB Noise Figure @ 1850MHz
• 1.75dB Noise Figure @ 2450MHz
• 18.0dB Gain at PCS/DCS
• 15.5dB Gain at 2.45GHz
• External Bias Control
• Extremely Small SOT23-5 Package

Application

• DCS GSM
• PCS CDMA
• PCS TDMA
• 2.4GHz Systems
• General Purpose Amplification
• Commercial and Consumer Systems

Pinout

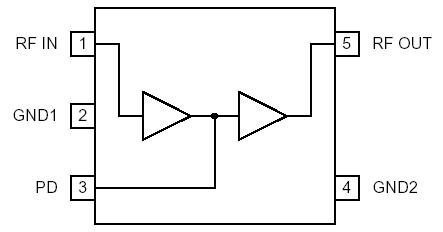

Connection Diagram

Specifications

Parameter	Rating	Unit
Supply Voltage Input RF Level Operating Ambient Temperature Storage Temperature	-0.5 to +8.0 +10 -40 to +85 -40 to +150	VDC dBm °C °C

Description

The RF2365 is a low noise amplifier with a high dynamic range designed for the receive front end of digital cellular applications at PCS/DCS frequencies.RF2365 is designed to amplify low level signals with minimum noise contribution while operating in the harsh, interference-rich environments of newly deployed digital subscriber units. The part of RF2365 provides excellent performance as a LNA for 2.4GHz radio applications. The IC is featured in a standard SOT5-lead plastic package.
