Product Details

Description

Features:

• 700MHz to 2000MHz Operation
• 2.7V to 3.6V Single Supply
• +5dBmInput IP3 at 3.0mA
• 12dBGain at 1950MHz
• 1.8dB Noise Figure at 1950MHz
• 17dBGain Step

Application

• GSMHandsets
• CDMA Handsets
• TDMA Handsets
• IF or RF Buffer Amplifiers
• Driver Stage for Power Amplifiers
• Oscillator Loop Amplifiers

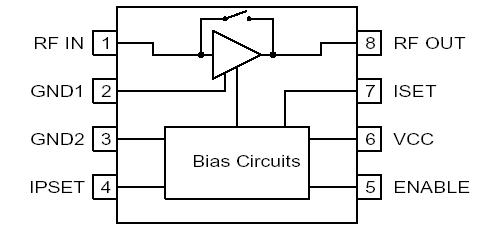

Pinout

Connection Diagram

Specifications

Parameter	Rating	Unit
Supply Voltage Supply Current Operating Ambient Temperature Storage Temperature	4.0 20 -40 to +85 -40 to +150	V mA °C °C

Description

The RF2371 is a general purpose, low-cost, high performance low noise amplifier designed for operation from a 2.7V to 4V supply with low current consumption. The attenuation of the device is controlled when in power down mode, providing a known gain step. The RF2371 is available in a small industry-standard SOT23-8 surface mount package, enabling compact designs which conserve board space. The RF2371 features a highly accurate PTAT (Proportional To Absolute Temperature) biasing scheme using bandgap cells.
