RF2402

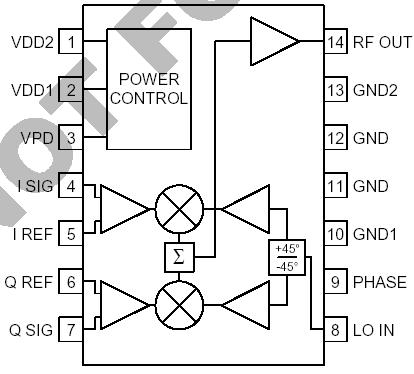

The RF2402 is a monolithic integrated universal modulation system capable of generating modulated AM, PM, or compound carriers in the UHF frequency range. The IC contains all of the required components to implement the modulation function including differential amplifiers for the baseband inputs, a 90° hybrid phase splitter, limiting LO amplifiers, two balanced mixers, a combining amplifier, and an output RF amplifier which will drive a 50Ω load. Component matching, RF2402 can only be accomplished with monolithic construction, RF2402 is used to full advantage to obtain excellent amplitude balance and high phase accuracy. The unit features low power consumption, single power supply operation, and adjustment free operation with no external parts required to operate the part as specified.
